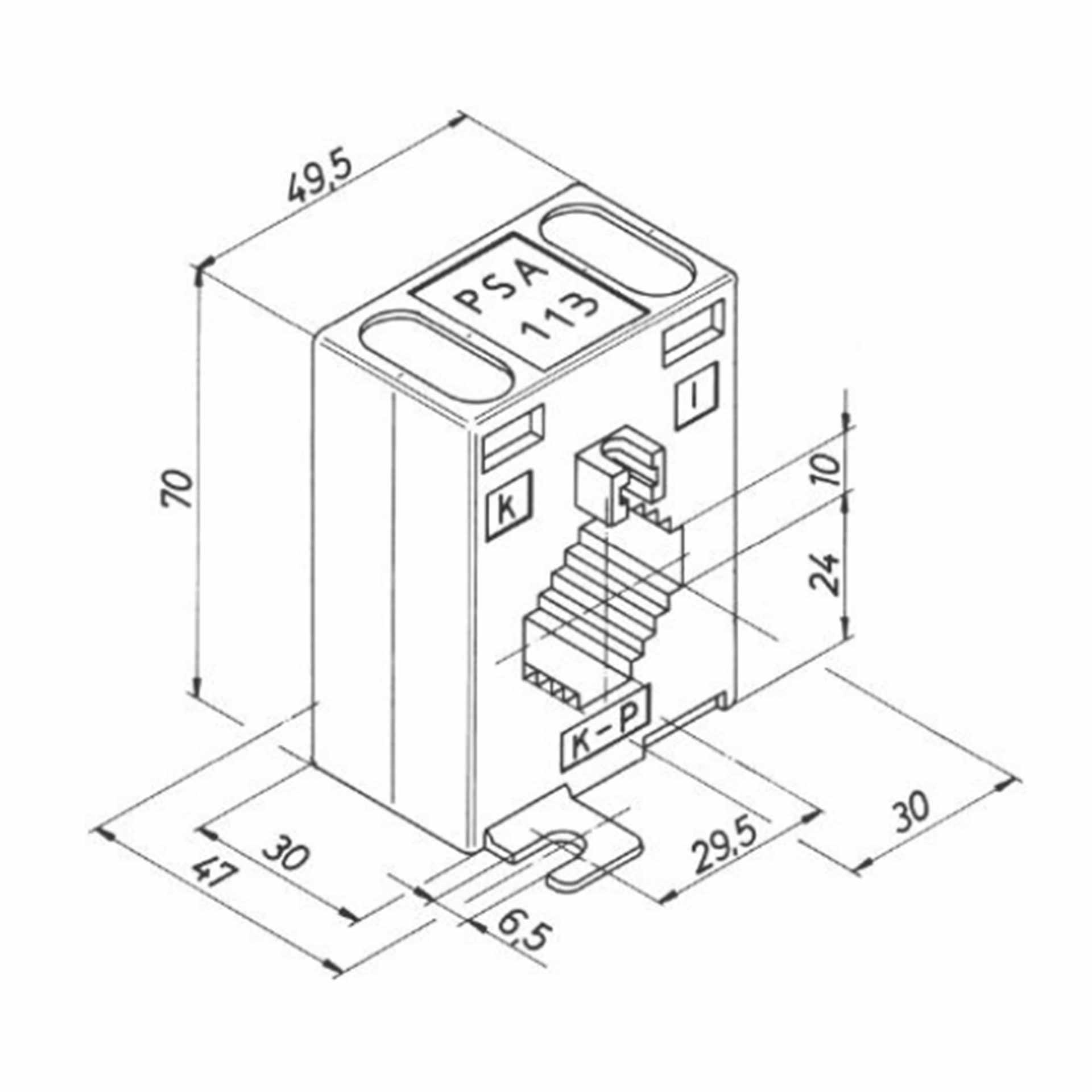

Product information "Current transformer PSA 113 | 500/5A, 2.5VA, class 0.5, 30x10mm / 25x15mm / 20x20mm / Ø26mm"
| Accuracy class: | Class 0.5 |
|---|---|
| Apparent electrical power: | 2.5VA |
| Calibratable: | No |
| Depth: | 30 mm |
| Dimensions (LxWxH): | 30 mm |
| Halogen-free: | Yes |
| Height: | 70 mm |
| Max. Cable diameter: | 26mm |
| Max. Copper dimension: | 20x20mm, 25x15mm, 30x10mm |
| Rated current: | 500A |
| Transformer ratio: | 500/5A |
| Width: | 49.5 mm |
