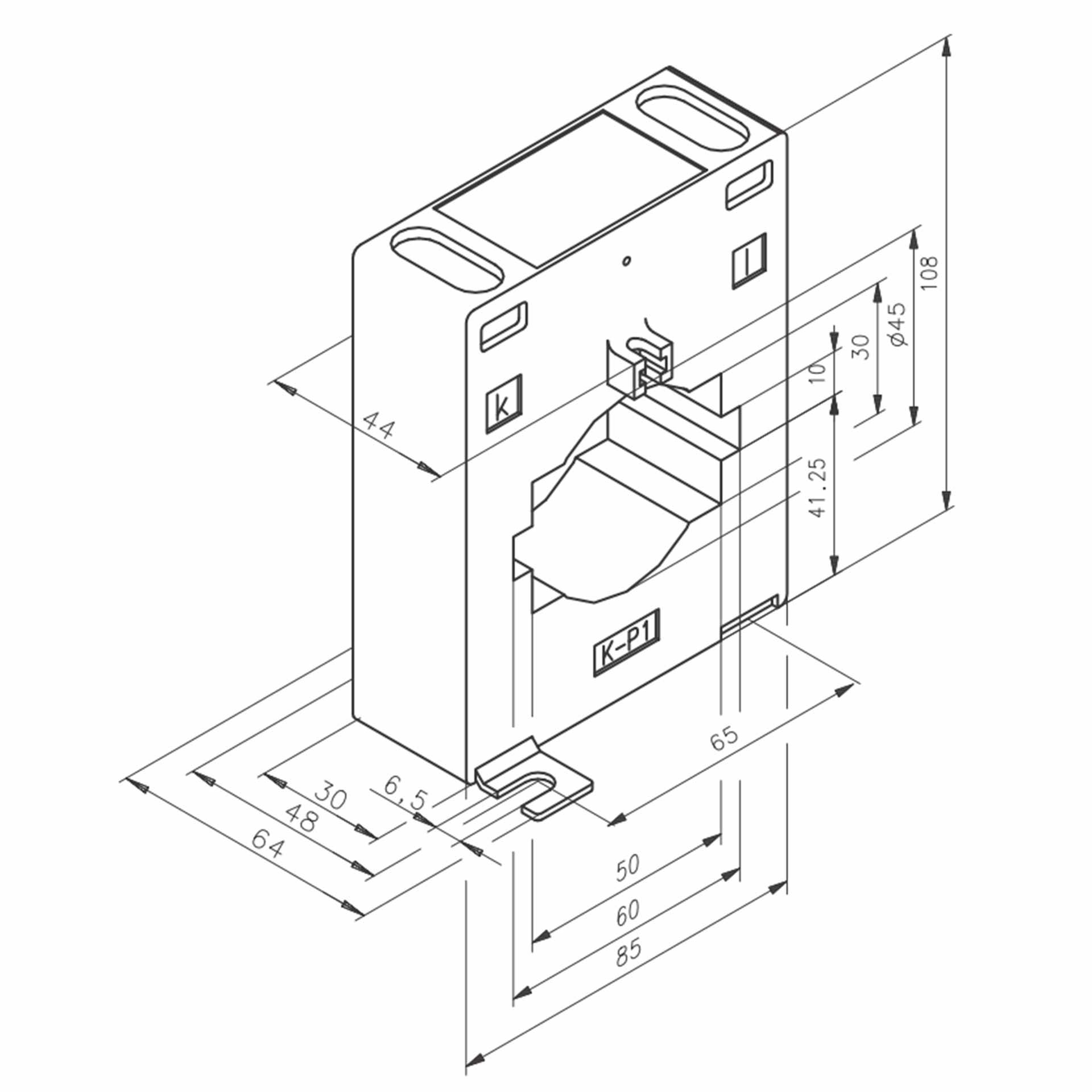

Product information "Current transformer PSA 613 | 1250/5A, 5VA, class 0.5, 60x10mm / 50x30mm / Ø45mm"
| Accuracy class: | Class 0.5 |
|---|---|
| Apparent electrical power: | 5VA |
| Calibratable: | No |
| Depth: | 30 mm |
| Dimensions (LxWxH): | 30 mm |
| Halogen-free: | Yes |
| Height: | 108 mm |
| Max. Cable diameter: | 45mm |
| Max. Copper dimension: | 50x30mm, 60x10mm |
| Rated current: | 1250A |
| Transformer ratio: | 1250/5A |
| Width: | 85 mm |
