CHF 643.20
Price for:
1 Piece
Item number:
60724
Order for more CHF 79.00 and you will receive your order free of shipping costs.
Do you have some questions about this product?
- Your personal contact person
- Name: Tobias Schneider
- E-Mail: tobias@normrahmen.ch
- Phone: +41 31 744 10 42
-
Head of Product Development and Consultancy, Management Board
Product information "Energy meter EMU Professional II 3/5, TCP/IP LP, MID B+D and PTB-A 50.7 approval, 3PN"

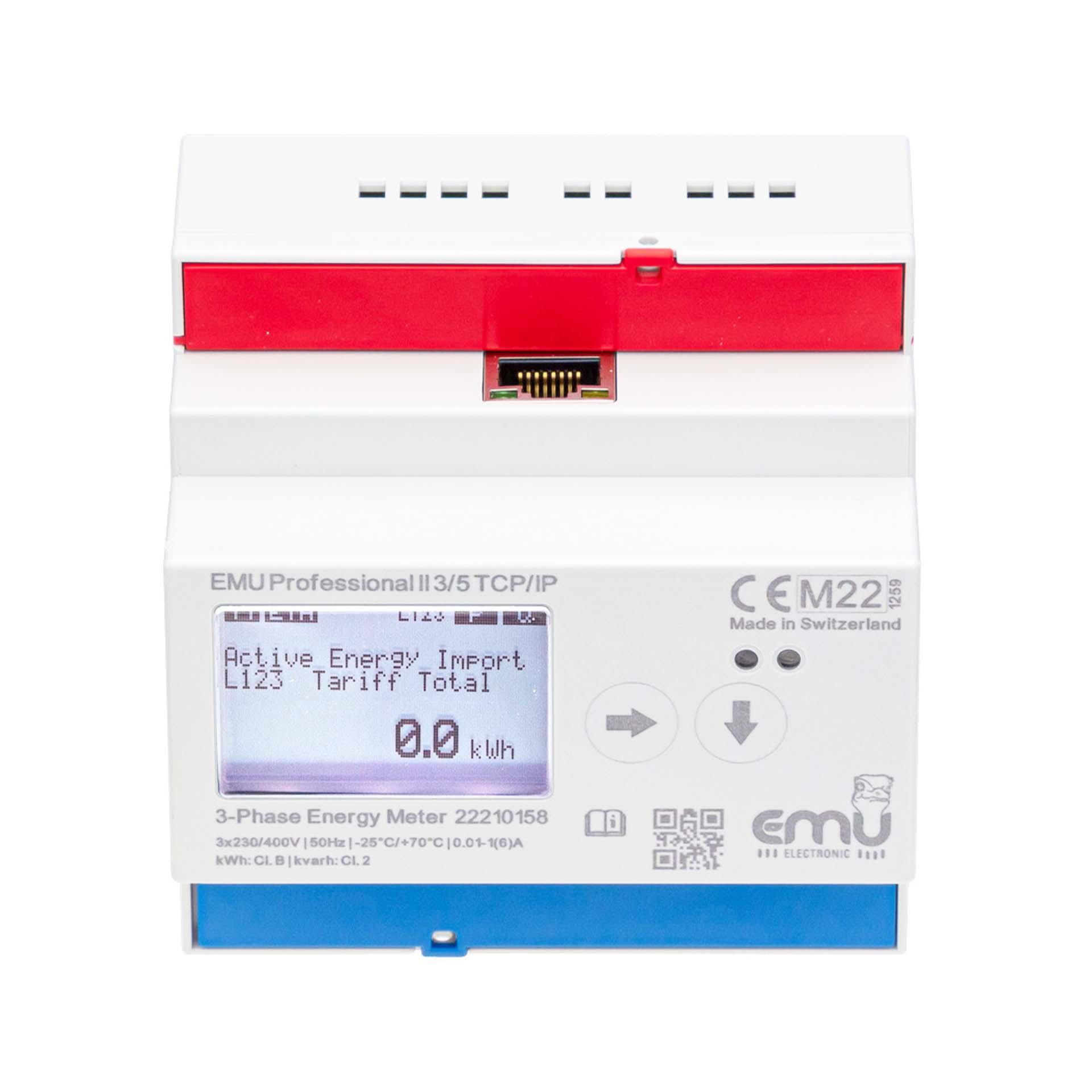

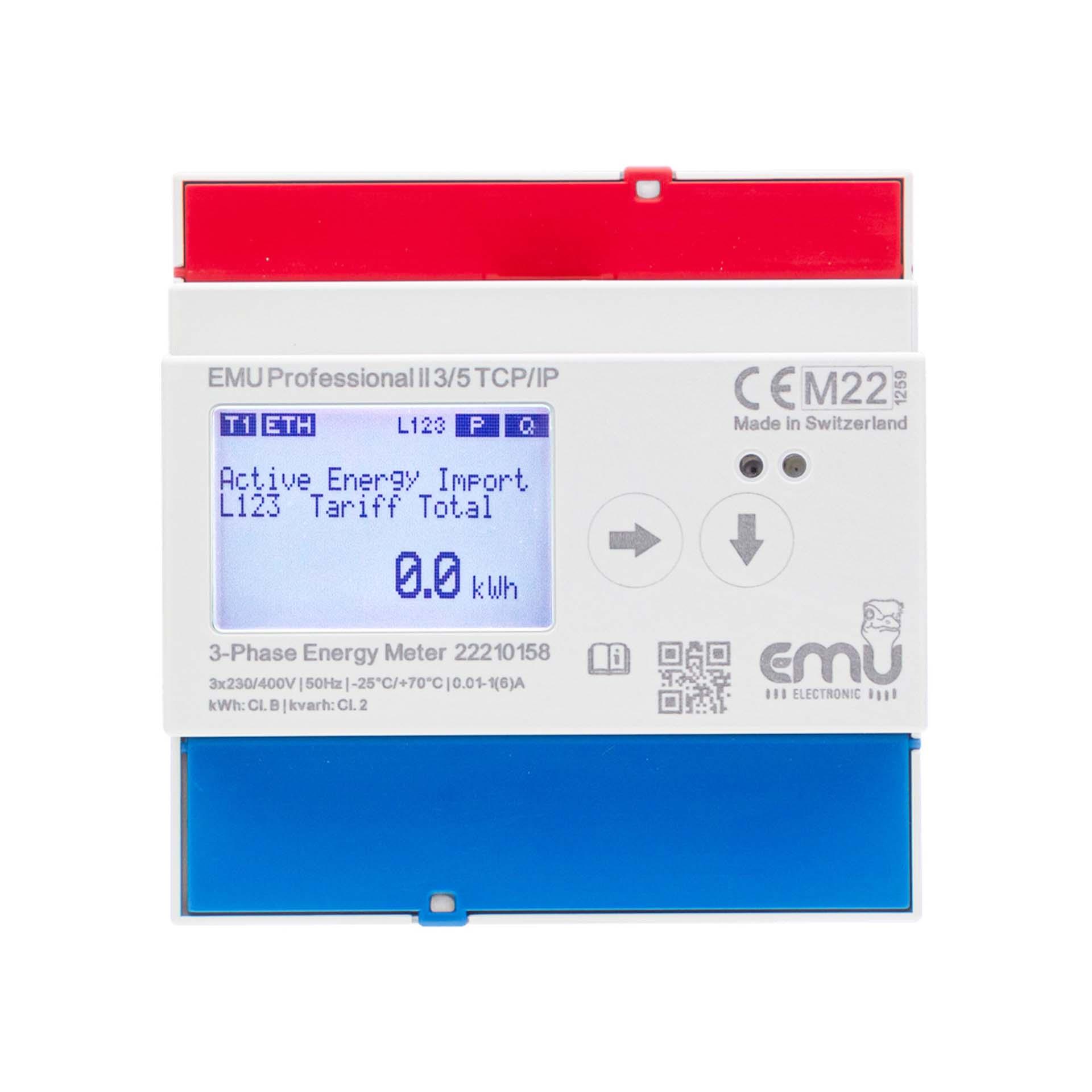

The 3-phase EMU Professional II 3/5 TCP/IP LP is an energy meter which is approved in accordance with MID B+D and PTB-A 50.7. This measuring transformer meter has an integrated TCP/IP interface.
| Accuracy class: | B |
|---|---|
| Authorisation: | MID B+D & PTB-A.50.7 |
| Bidirectional counter: | Yes |
| Blockchain technology: | Yes |
| Energy type: | Active energy supply, active energy purchase & Reactive energy |
| Execution of the interface: | TCP/IP (Ethernet / network) |
| Illuminated display: | Yes |
| MID: | MID B+D |
| Measurement type: | Transducer measurement |
| Meter type: | Electronic |
| Mounting type: | REG (top-hat rail) |
| Permitted for billing purposes: | Yes |
| Polar type: | Four-wire |
| Pulse outputs: | 4 |
| Pulse type: | S0 |
| Suitable for energy management in accordance with ISO 50001: | Yes |
| Tariff execution: | Double tariff |
