Product information "Hard rubber site power distributor 261S-08 63A"

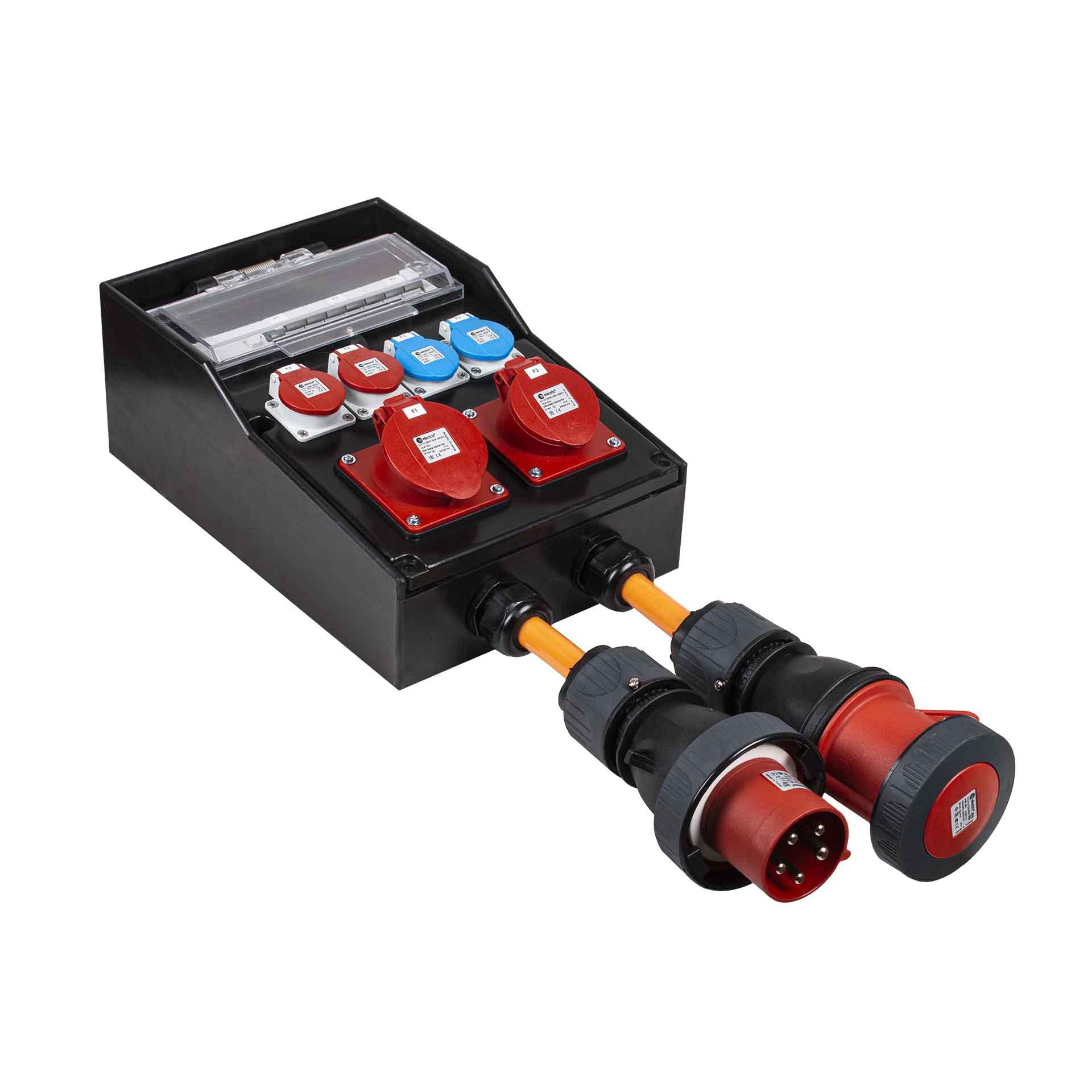

Hard rubber site power distributor 261S-06 63A
Our hard rubber power distributors are ideal for both indoor and outdoor use. For industrial, commercial, trade and public areas. Compliance with all current regulations and standards (IEC EN-61439). The distribution boards can also be configured according to your individual requirements.
Impact-resistant, corrosion-free, UV-resistant, halogen-free, flame-retardant and self-extinguishing, ageing and temperature-resistant, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded design verification and parts certificates in accordance with IEC EN 61439-4
Features of hard rubber site power distribution board 261S-06 63A:
- Direct wall mounting possible
- Dimensions (L x W x D): 380 x 260 x 150mm
- 1 x large handle
- 1 x RCD 63A type A 3PN 30mA
- 1 x LS 32A C 3P 10kA
- 1 x LS 16A C 3P 10kA
- 1 x LS 16A C 1P 10kA
- 2 x socket outlet T25 230/400V
- 2 x socket outlet T23 230V
- 1 x socket outlet CEE 16A 400V 6h
- 1 x socket outlet CEE 32A 400V 6h
- 2 x M40 cable gland
- 1 x 0.4 metre G-PUR cable 5x16.0mm2 with plug CEE 63/5 6h
- 1 x 0.4 metre G-PUR cable 5x16.0mm2 with coupling CEE 63/5 6h
Optionally available:
- Available without handle
- Base frames available for mobile use
- Can be engraved according to your specifications
