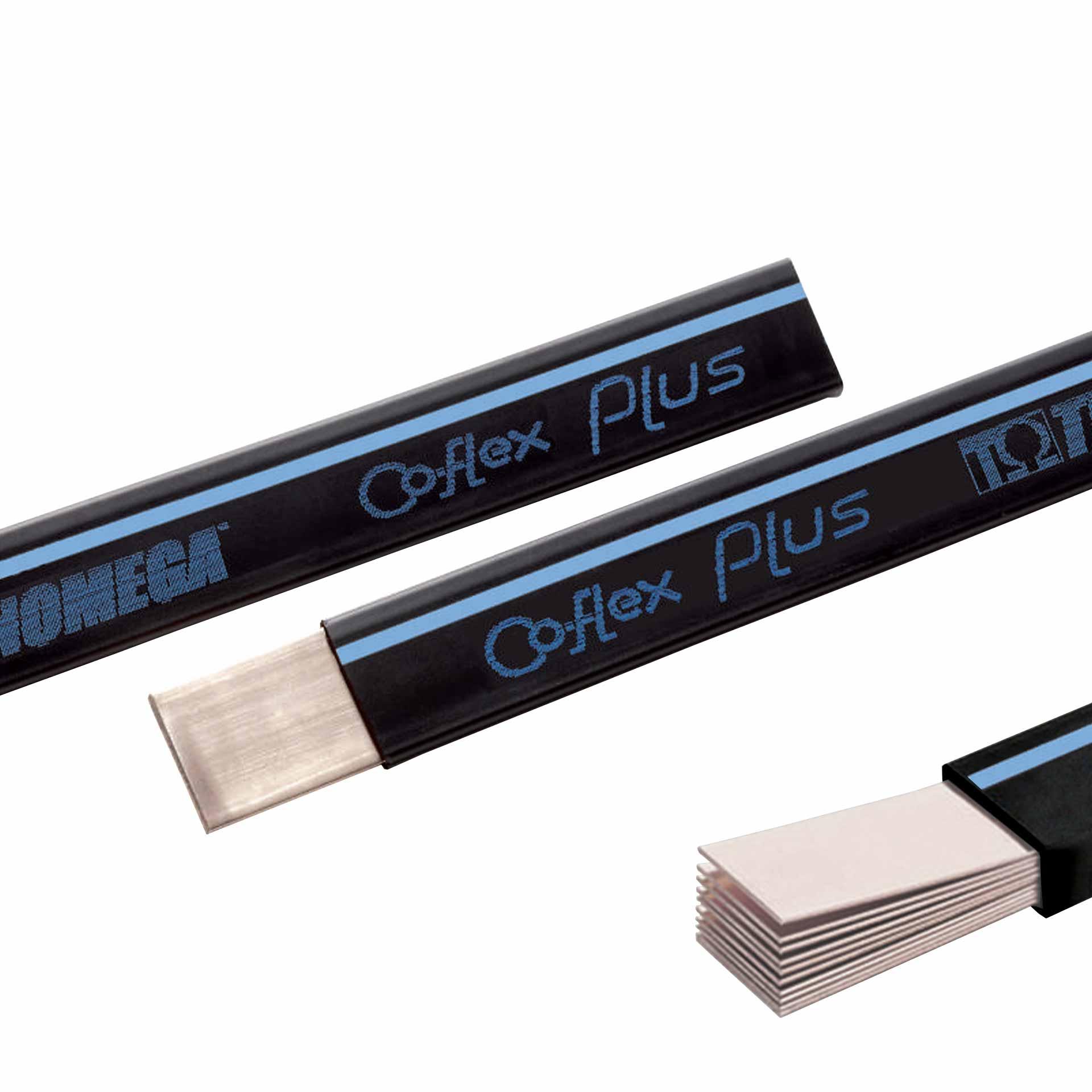

Product information "Insulated flat copper bars flexible, 6x32x1mm, halogen-free, 2m bar"
| Halogen-free: | Yes |
|---|---|
| Length: | 2000 mm |
| Material thickness: | 1 mm |
| Number of slats: | 6 |
| Operating temperature from: | -40 °C |
| Operating temperature up to: | 140 °C |
| Rated current at +35° C: | 559A |
| Rated current at +55° C: | 715A |
| Rated current at +70° C: | 813A |
| Rated current at +105° C: | 1007A |
| Rated voltage: | 1000V AC, 1500V DC |
| Width: | 32 mm |
