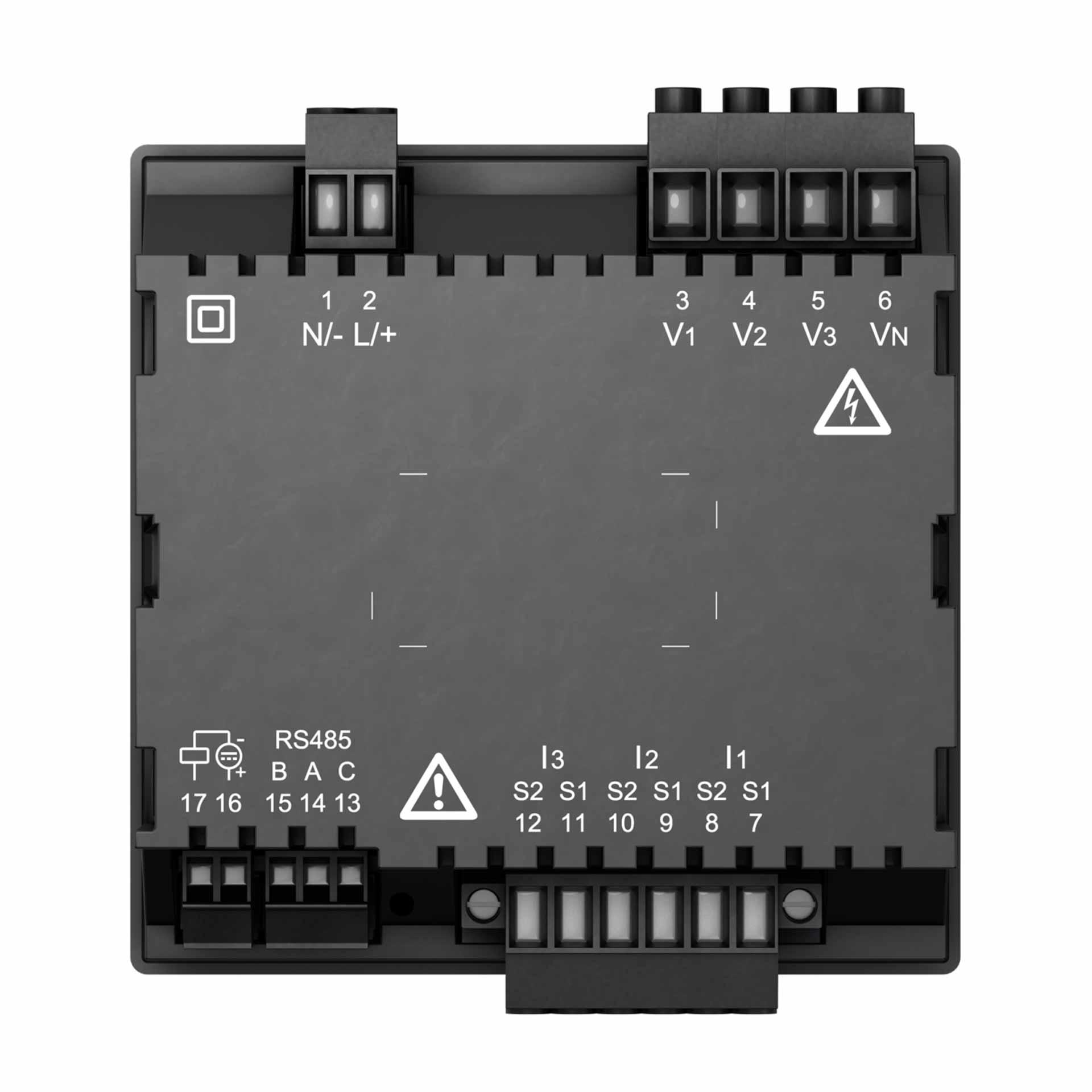

Product information "Janitza entry-level universal measuring device UMG 96-S2"
Applications can be found in energy distribution systems, for example for cost centre recording and limit value monitoring. The device can also be used as a measurement value transmitter for building management systems or a PLC
| 4th current transformer input: | No |
|---|---|
| Accuracy A: | 0.2% |
| Accuracy V: | 0.2% |
| Active energy class: | 0.5S (.../5 A) |
| Analogue output: | None |
| Asymmetry: | No |
| Clock: | No |
| Current measuring channels: | 3 |
| Digital / pulse output: | 1 |
| Digital inputs: | None |
| Distortion factor THD-U / THD-I in %: | Yes |
| Execution of the interface: | Modbus RTU RS485 |
| Fault recorder function: | No |
| Harmonics V/A: | 1.-15. |
| Integrated logic: | No |
| Memory min / max values: | Yes |
| Memory size: | No memory |
| Quadrants: | 4 |
| Residual current inputs: | None |
| Sampling frequency 50/60 Hz: | 8 kHz |
| Short-term interruptions: | No |
| Short / long-term flicker: | No |
| Supply voltage: | 90 - 265V AC & 90 - 250V DC |
| Temperature input: | None |
| Web server / e-mail: | No |
