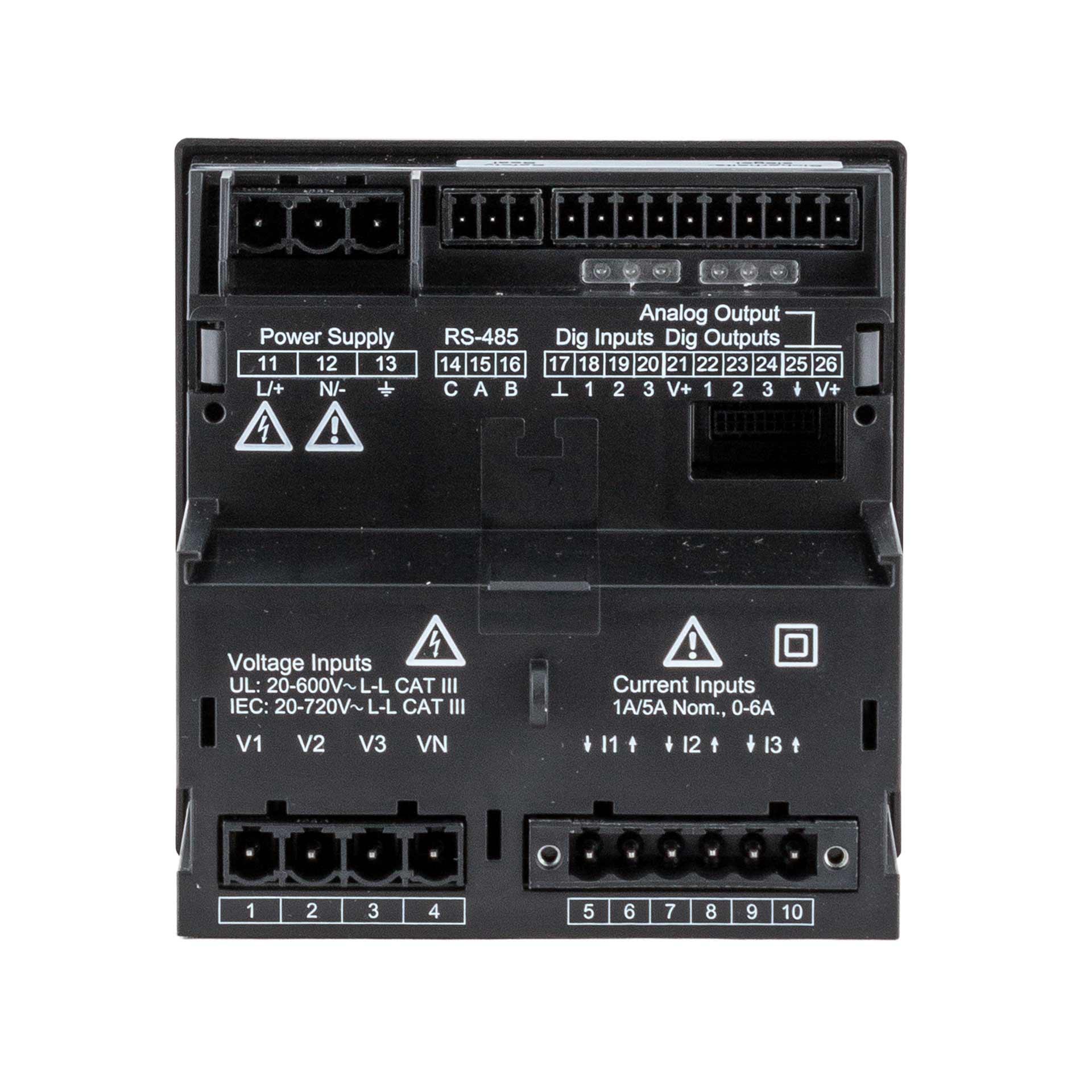

Product information "Janitza Modular Expandable Network Analyser UMG 96-PA - 24V"
The UMG 96-PA energy measurement device can combine four functions in one device and can be modularly extended by two analogue inputs - either as 0-20 mA analogue inputs (e.g. DC measurement) or as RCM measurement inputs with cable break detection and additional temperature measurement
| 4th current transformer input: | Only with additional module |
|---|---|
| Accuracy A: | 0.2% |
| Accuracy V: | 0.2% |
| Active energy class: | 0.2S (.../5 A) |
| Analogue output: | 1 |
| Asymmetry: | No |
| Clock: | Yes |
| Current measuring channels: | 3 / with additional module 4 |
| Digital / pulse output: | 3 |
| Digital inputs: | 3 |
| Distortion factor THD-U / THD-I in %: | Yes |
| Execution of the interface: | Modbus RTU RS485, with additional module 1x TCP/IP (Ethernet / network) |
| Fault recorder function: | No |
| Harmonics V/A: | 1.-40. |
| Integrated logic: | Comparator |
| Memory min / max values: | Yes |
| Memory size: | 8 MB |
| Quadrants: | 4 |
| Residual current inputs: | None / with additional module 2 |
| Sampling frequency 50/60 Hz: | 8.13 kHz |
| Short-term interruptions: | No |
| Short / long-term flicker: | No |
| Supply voltage: | 24 - 90V AC & 24 - 90V DC |
| Temperature input: | None / with additional module 1 |
| Web server / e-mail: | No |
Accessories for Janitza Modular Expandable Network Analyser UMG 96-PA - 24V
Additional module for UMG 96-PA, 96-PA-MID+ and UMG 96-PQ-L
