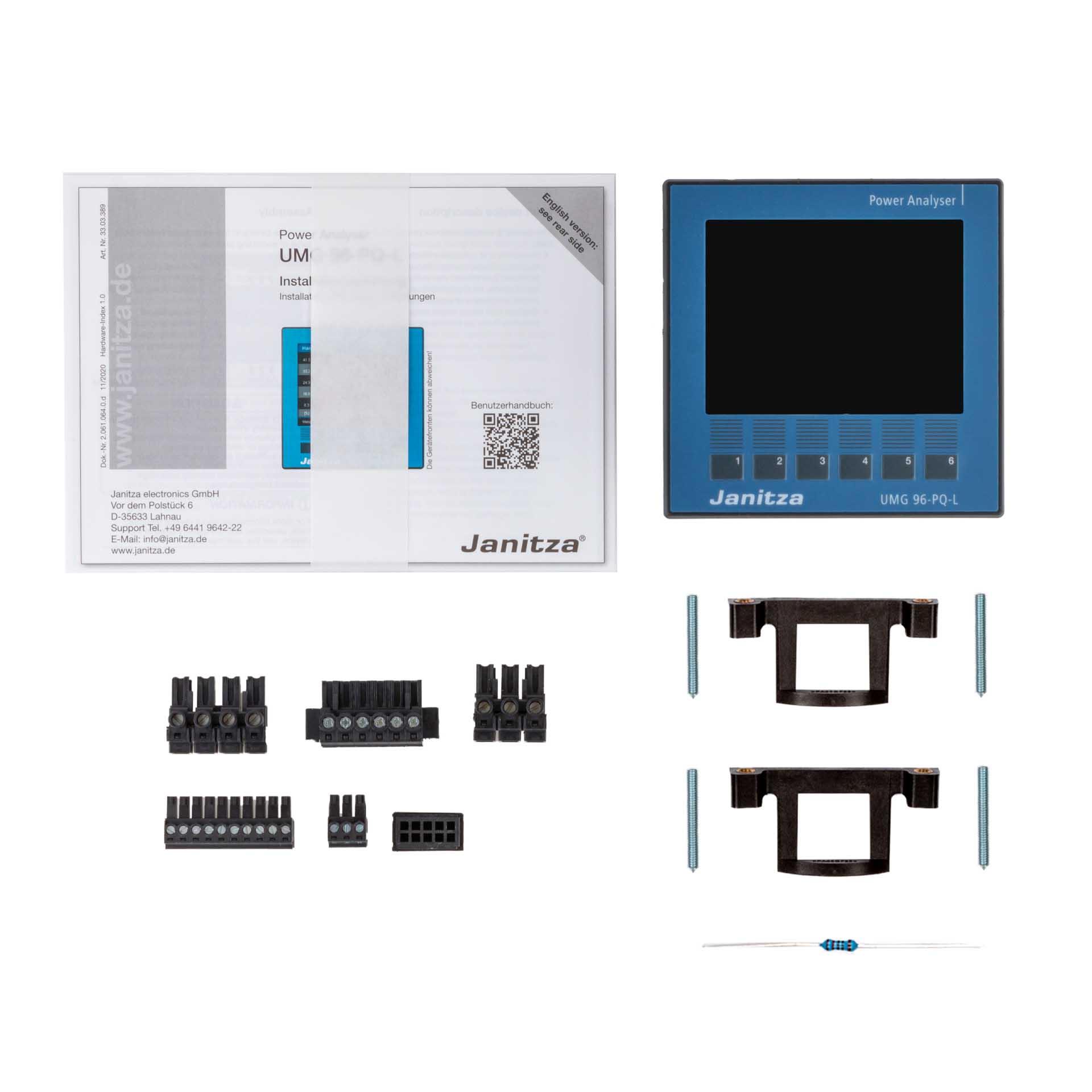

Product information "Janitza Modular Expandable Network Analyser UMG 96-PQ-L"
Whether temperature monitoring, power quality analysis or residual current monitoring, the UMG 96-PQ-L offers the right functions for all applications and can be used in the immediate vicinity of residential, commercial and industrial areas thanks to EMC class B. All values can be conveniently and easily displayed on the colour graphic display. The UMG 96-PQ-L also offers the option of using plug-in modules to extend the range of functions.
| 4th current transformer input: | Only with additional module |
|---|---|
| Accuracy A: | 0.2% |
| Accuracy V: | 0.2% |
| Active energy class: | 0.2S (.../5 A) |
| Analogue output: | 1 |
| Asymmetry: | No |
| Clock: | Yes |
| Current measuring channels: | 3 / with additional module 4 |
| Digital / pulse output: | 3 |
| Digital inputs: | 3 |
| Distortion factor THD-U / THD-I in %: | Yes |
| Execution of the interface: | Modbus RTU RS485, with additional module 1x TCP/IP (Ethernet / network) |
| Fault recorder function: | No |
| Harmonics V/A: | 1.-65. |
| Integrated logic: | Comparator |
| Memory min / max values: | Yes |
| Memory size: | 64 MB |
| Quadrants: | 4 |
| Residual current inputs: | None / with additional module 2 |
| Sampling frequency 50/60 Hz: | 13.67 kHz |
| Short-term interruptions: | No |
| Short / long-term flicker: | No |
| Supply voltage: | 90 - 265V AC & 90 - 250V DC |
| Temperature input: | None / with additional module 1 |
| Web server / e-mail: | No |
