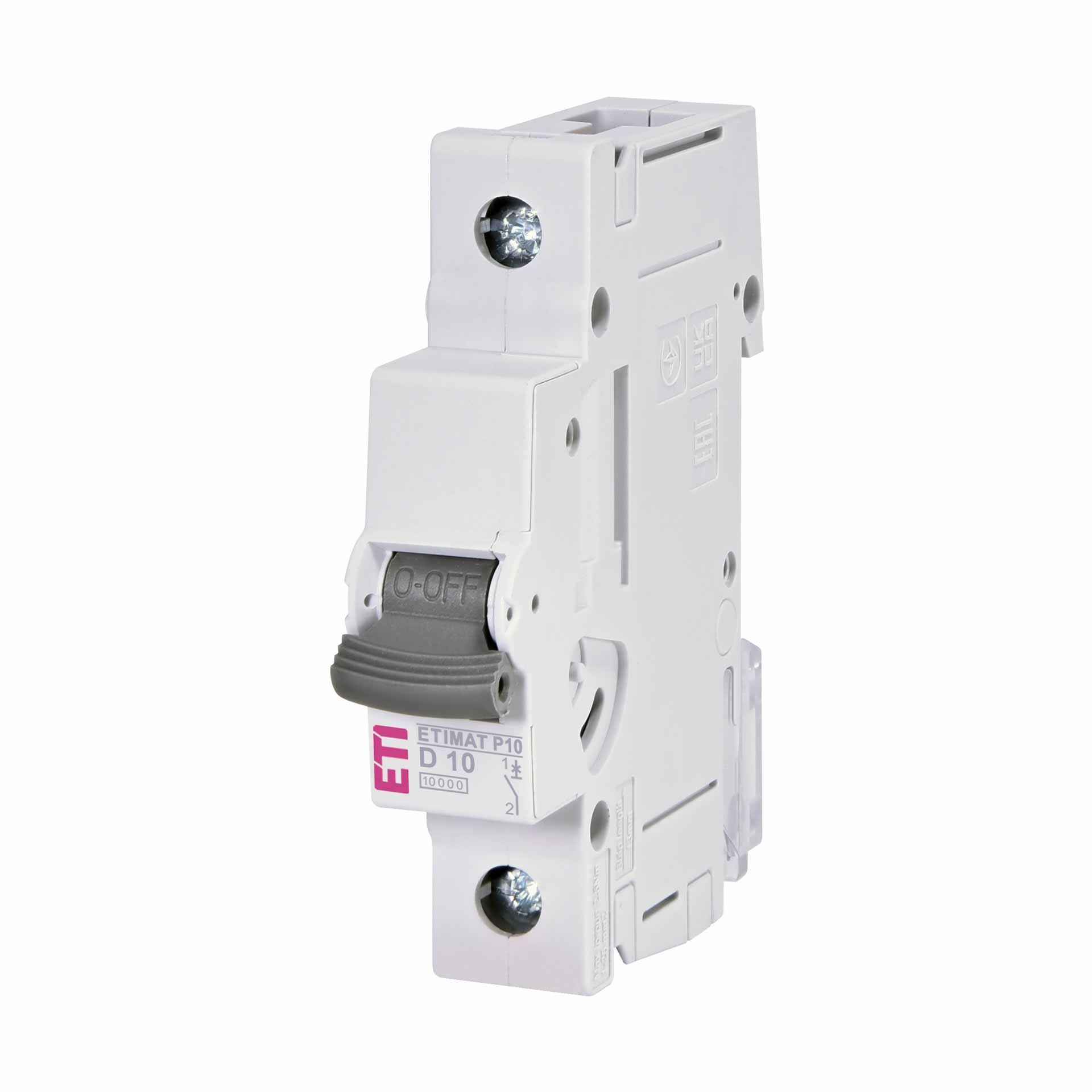

Product information "Miniature circuit-breaker, ETIMAT P10, 1-pole+N, characteristic D / 2A, 10kA"
| Characteristic: | D |
|---|---|
| Connection cross-section (flexible): | 1-25 mm2 |
| Connection technology: | Screw terminal |
| Frequency: | 50 & 60 Hz |
| Halogen-free: | Yes |
| Height: | 74.5 mm |
| Length: | 89 mm |
| Number of poles: | 2 |
| Number of wiring points: | 4 |
| Operating temperature from: | -40 °C |
| Operating temperature up to: | 75 °C |
| Protection class: | IP 20 |
| Rated current: | 2A |
| Short-circuit resistance: | 10kA |
| Width: | 35.6 mm |
| Width in pitch units: | 2 Module |
