Product information "NH fuse switch-disconnector size 1, 3P, max. 250A, KETO-1-3/R150 (surface mounting)"
| Cable connection: | Frame clamp R150 35-150mm² |
|---|---|
| Conditional rated short-circuit current Icc: | 120kA (AC500V) |
| Max. Rated operating current Ie: | 250A |
| Max. Rated operating voltage Ue: | 690V |
| Mounting type: | Surface mounting |
| Number of poles: | 3 |
| Size: | NH1 |
| Switchability: | 3-pole switchable |
Accessories for NH fuse switch-disconnector size 1, 3P, max. 250A, KETO-1-3/R150 (surface mounting)

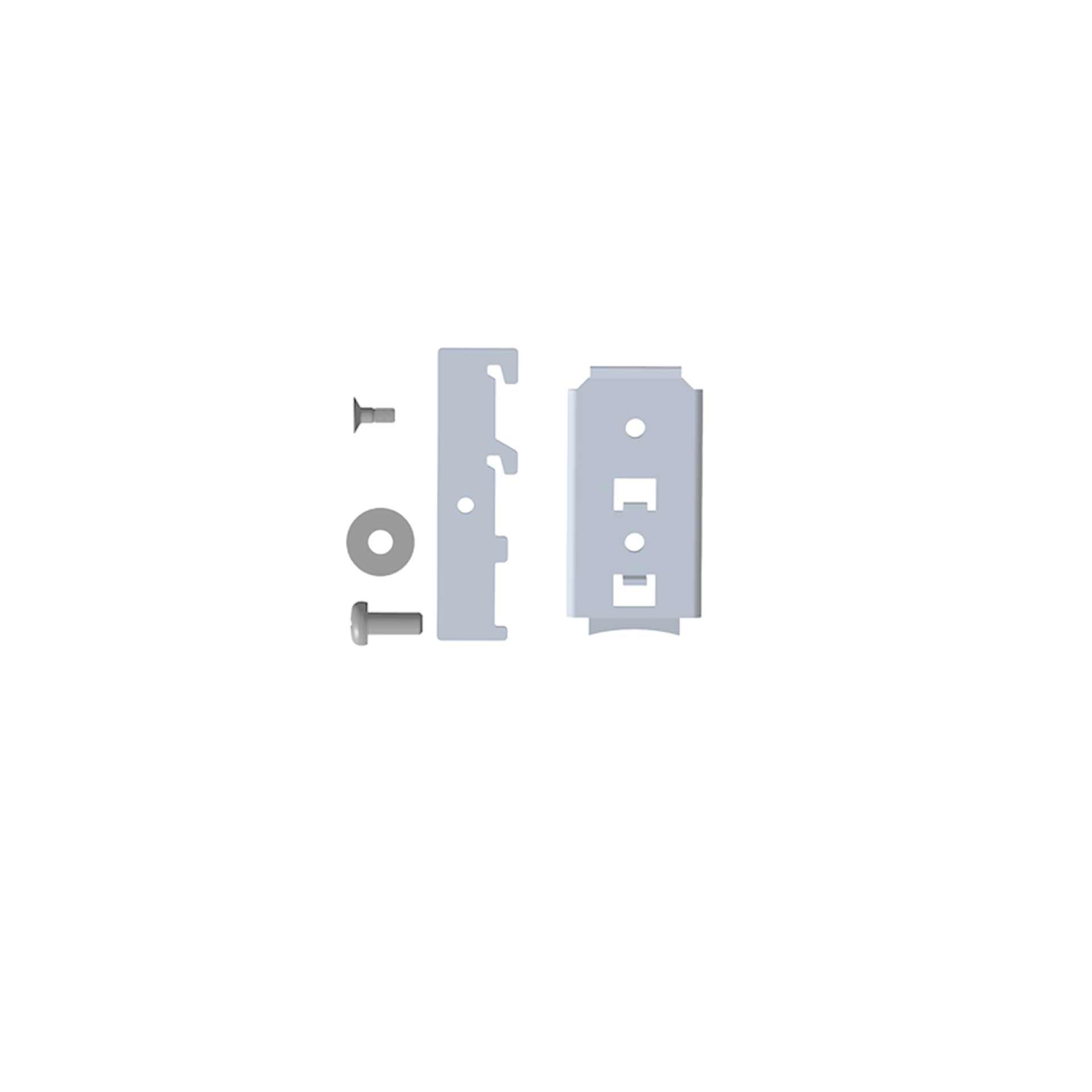

For mounting on 2 top-hat rails (distance 100-150mm) for KETO/KVL size 1
For supporting field covers for KETO sizes 1, 2 and 3 Mounting top, bottom, right or left
For signalling the switching status for KETO/KVL sizes 1, 2 and 3 1 changeover contact, AC250V, 10/3A (ohmic/ind.)
For phase-selective monitoring of the fuse cut-out for KETO/KVL size 1, 2 and 3, 3-pole 1 changeover contact, AC250V, 10/3A (ohmic/ind.)
Content: 1 Piece (CHF 50.2665 / 3 Piece)
