CHF 287.9649
Do you have some questions about this product?
- Your personal contact person
- Name: Tobias Schneider
- E-Mail: tobias@normrahmen.ch
- Phone: +41 31 744 10 42
-
Head of Product Development and Consultancy, Management Board

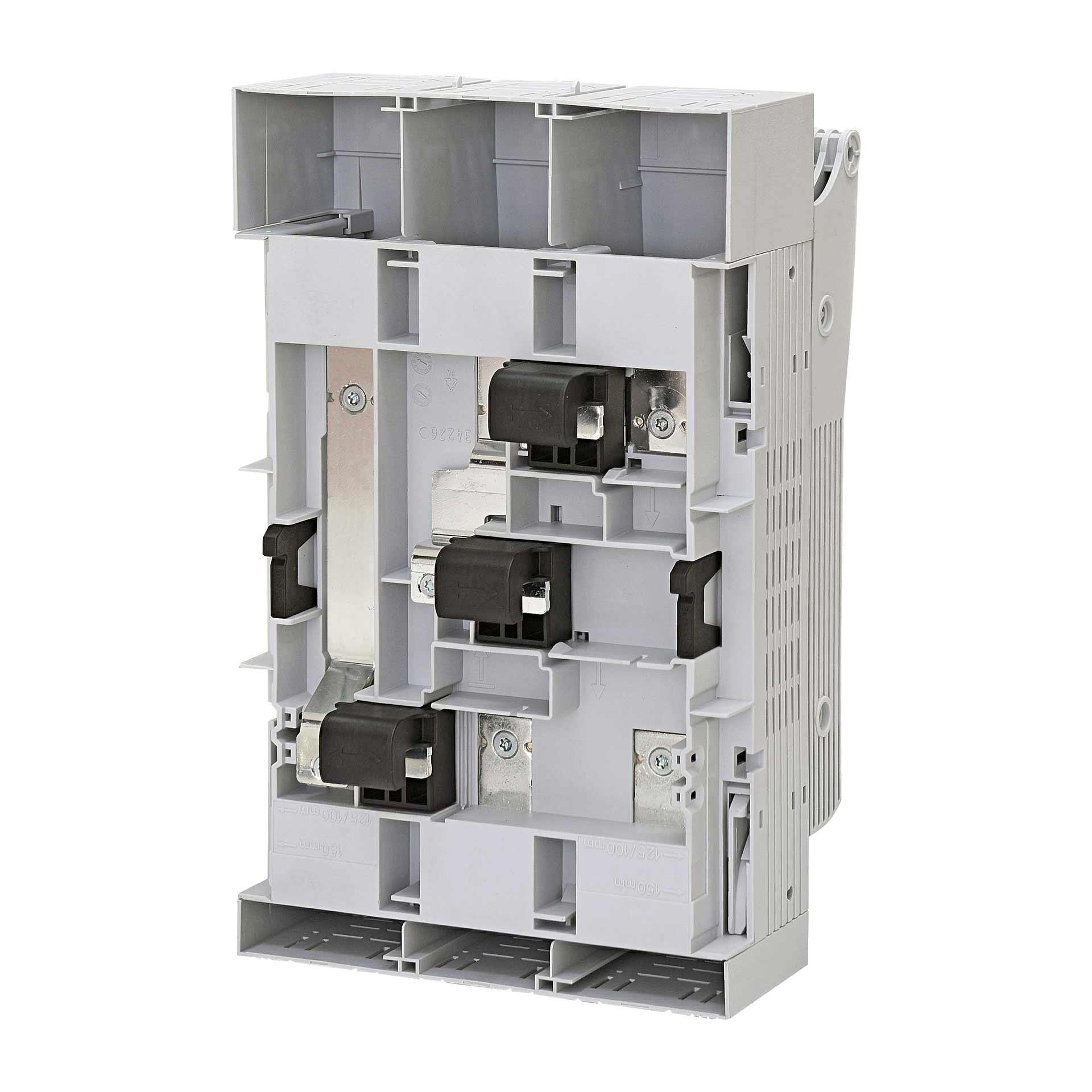

Product information "NH fuse switch-disconnector size 1, 3P, max. 250A, KVL B M10-M10 (busbar system)"
| Cable connection: | Flat connection M10 |
|---|---|
| Conditional rated short-circuit current Icc: | 120kA (AC500V) |
| Max. Rated operating current Ie: | 250A |
| Max. Rated operating voltage Ue: | 690V |
| Mounting type: | 60mm system |
| Number of poles: | 3 |
| Size: | NH1 |
| Switchability: | 3-pole switchable |
Accessories for NH fuse switch-disconnector size 1, 3P, max. 250A, KVL B M10-M10 (busbar system)
Rated operating voltage Ue: 690V, busbar thickness: 5-10mm, busbar width: 20mm, 30mm
Content: 1 Piece (CHF 140.5300 / 10 Piece)
Side cover for busbar supports (SST-60xx)
Content: 1 Piece (CHF 41.6190 / 10 Piece)
Content: 1 Piece (CHF 140.5300 / 50 Piece)
Rated operating voltage Ue: 690V, busbar thickness: 5-10mm, busbar width: 20mm, 30mm, width: 54mm
Rated operating voltage Ue: 690V, busbar thickness: 10mm, busbar width: 20mm, 30mm, width: 84mm
Rated operating voltage Ue: 690V, busbar thickness: 5-10mm, busbar width: 20mm, 30mm, width: 144mm
For contact-protected covering of the busbar compartment from above and below for KETO size 1, 3-pole for busbar supports OK busbar - mounting level 34 or 39mm (e.g. J. MÜLLER)
Content: 1 Piece (CHF 13.1882 / 2 Piece)
For contact-protected covering of the busbar compartment from above and below for KETO size 1, 3-pole for busbar supports OK busbar - mounting level 32mm (e.g. Wöhner)
Content: 1 Piece (CHF 13.1882 / 2 Piece)
For supporting field covers for KETO sizes 1, 2 and 3 Mounting top, bottom, right or left
For signalling the switching status for KETO/KVL sizes 1, 2 and 3 1 changeover contact, AC250V, 10/3A (ohmic/ind.)
For phase-selective monitoring of the fuse cut-out for KETO/KVL size 1, 2 and 3, 3-pole 1 changeover contact, AC250V, 10/3A (ohmic/ind.)
Content: 1 Piece (CHF 50.2665 / 3 Piece)
