Product information "NH fuse-switch disconnectors E4, size 2, 3P, 185mm, for V connection (3-pole switchable) V2N"
• Variable, convertible cable connection

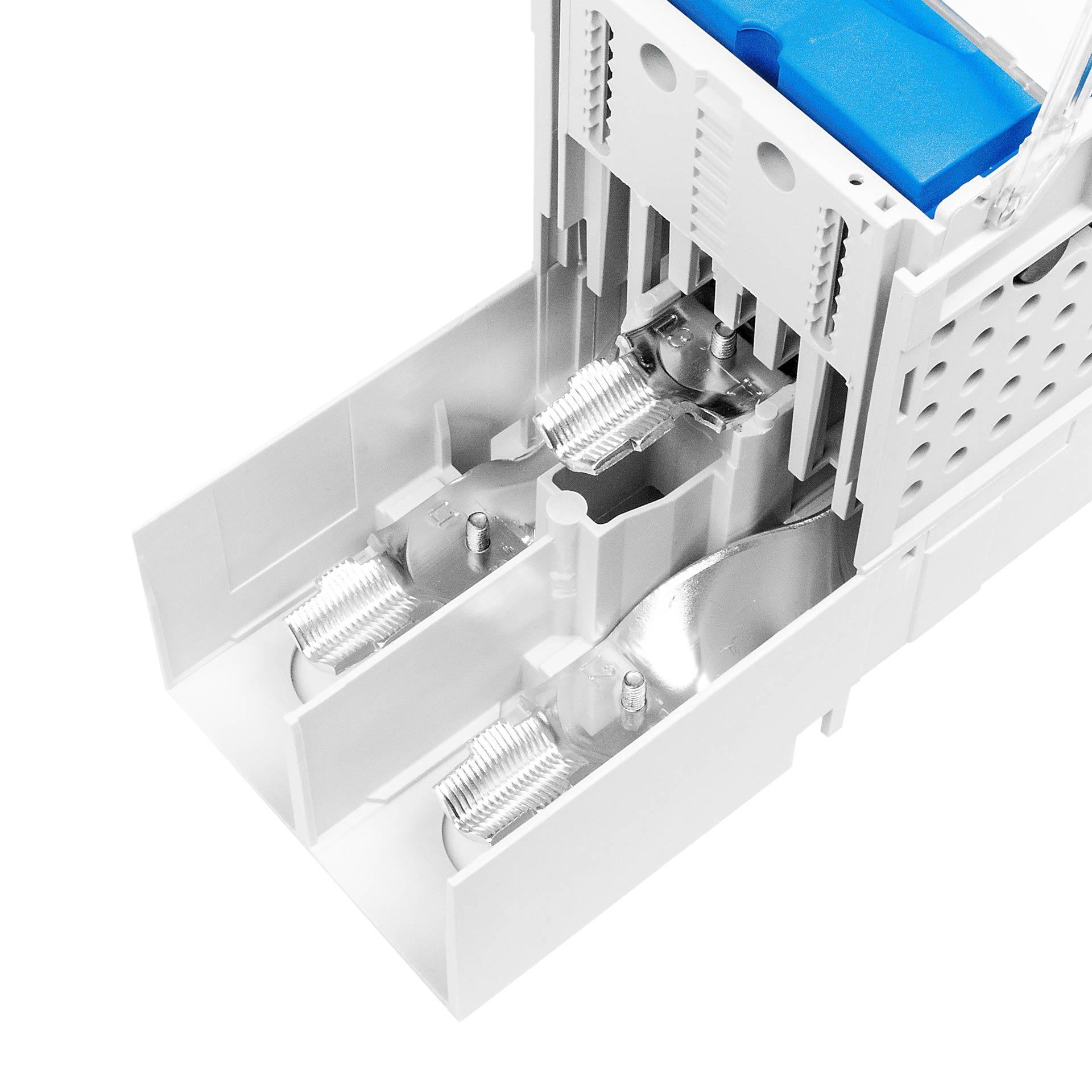

• V-connection terminals: 1x 35-240mm2 and 2x 50-185mm2 double terminal
• Standard installation depth 175mm, also for parallel operation
• IP2X without window
• Overlapping protection with integrated switch-stop position
• Optionally with hook contacting
| Cable connection: | V-clamp |
|---|---|
| Colour: | grey |
| Conditional rated short-circuit current Icc: | 120kA (AC500V) |
| Electronic fuse monitoring (ESÜ): | No |
| Halogen-free: | Yes |
| Max. Rated operating current Ie: | 400A |
| Max. Rated operating voltage Ue: | 800V |
| Mounting type: | 185mm system |
| Number of poles: | 3 |
| Size: | NH2 |
| Suitable for transformer installation: | Yes |
| Switchability: | 3-pole switchable |
| Top or bottom outlet: | below, top |
| With integrated feed-in connection: | No |
Accessories for NH fuse-switch disconnectors E4, size 2, 3P, 185mm, for V connection (3-pole switchable) V2N
1 set of clamps V2 MD 240sm/300rm rm/re = 25-240mm2 sm = 35-240mm2 se = 35-300mm2
Clamp E³ VST 35-240rm 1set (3pcs) rm = 35-240mm2 re = 35-300mm2 sm = 50-240mm2 se = 50-300mm2
