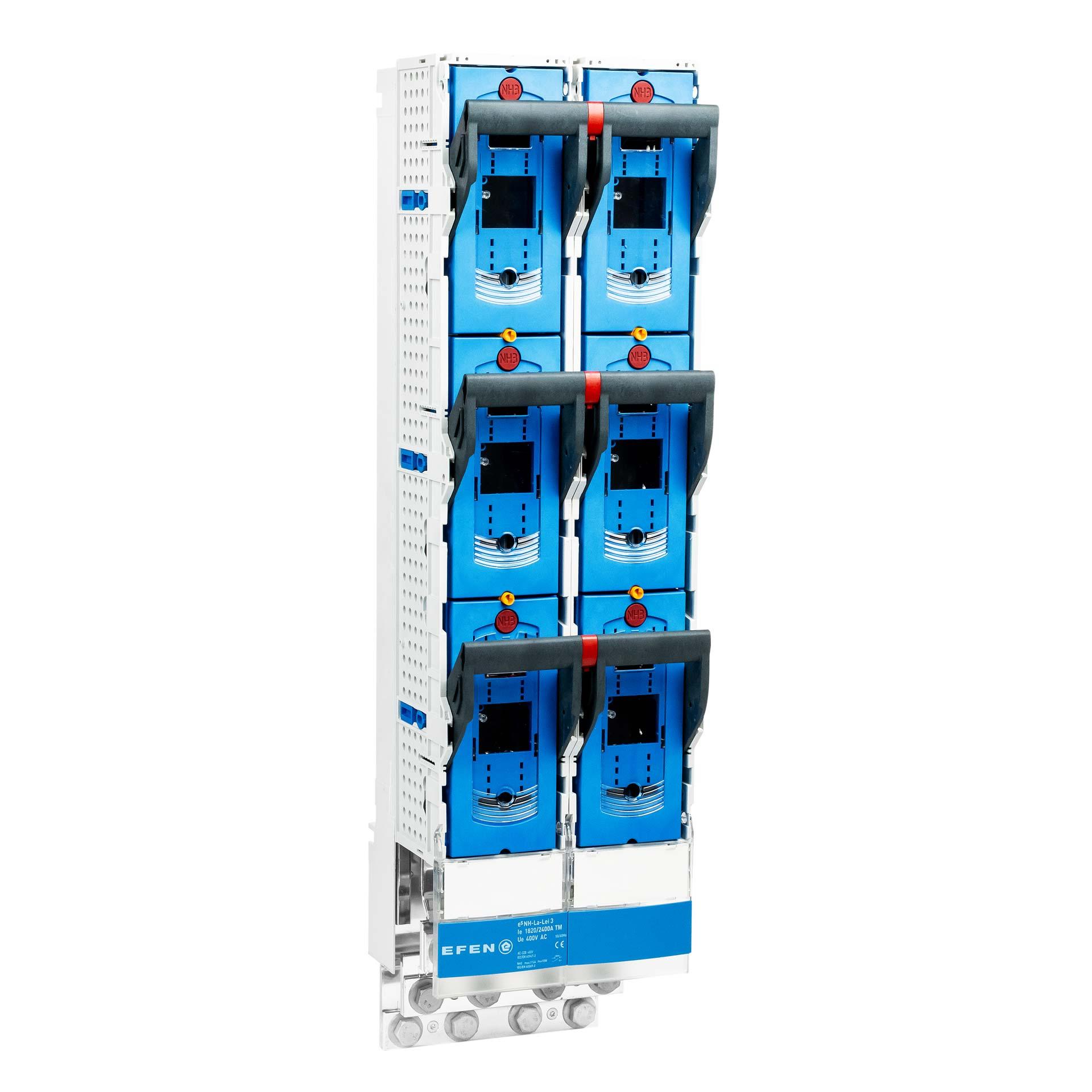

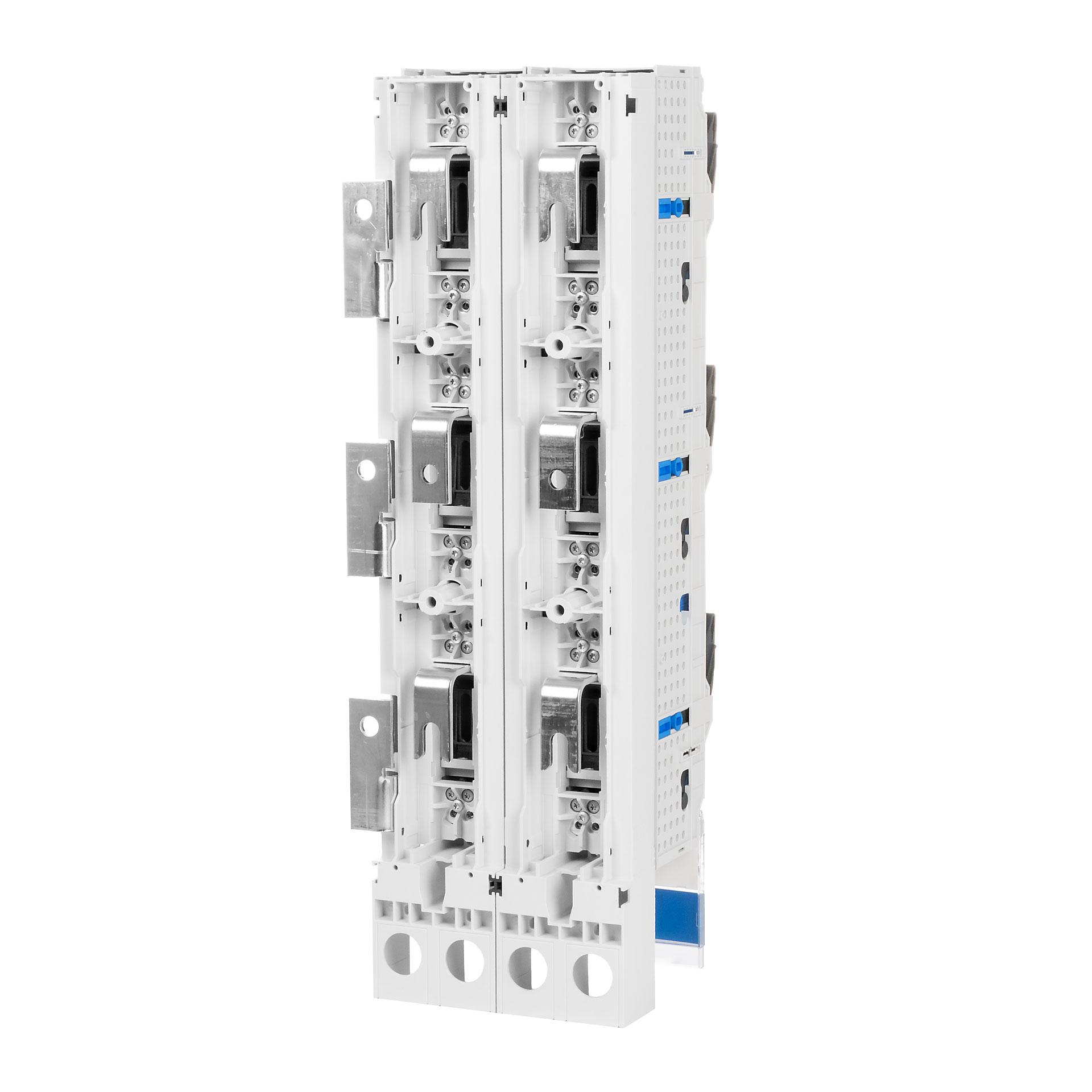

Product information "NH fuse-switch disconnectors size 3, 3P, 185mm, M12 (1-pole switchable) 1260A,double switch disconnector,AR"
| Cable connection: | Flat connection M12 |
|---|---|
| Colour: | grey |
| Conditional rated short-circuit current Icc: | 120kA (AC500V) |
| Electronic fuse monitoring (ESÜ): | No |
| Max. Rated operating current Ie: | 1260A |
| Max. Rated operating voltage Ue: | 690V |
| Mounting type: | 185mm system |
| Number of poles: | 3 |
| Size: | NH3 |
| Suitable for transformer installation: | Yes |
| Switchability: | 1-pole switchable |
| Top or bottom outlet: | right |
| With integrated feed-in connection: | No |
Accessories for NH fuse-switch disconnectors size 3, 3P, 185mm, M12 (1-pole switchable) 1260A,double switch disconnector,AR
HOOK CLAMP E3 1-3 1 set (3 pieces)
