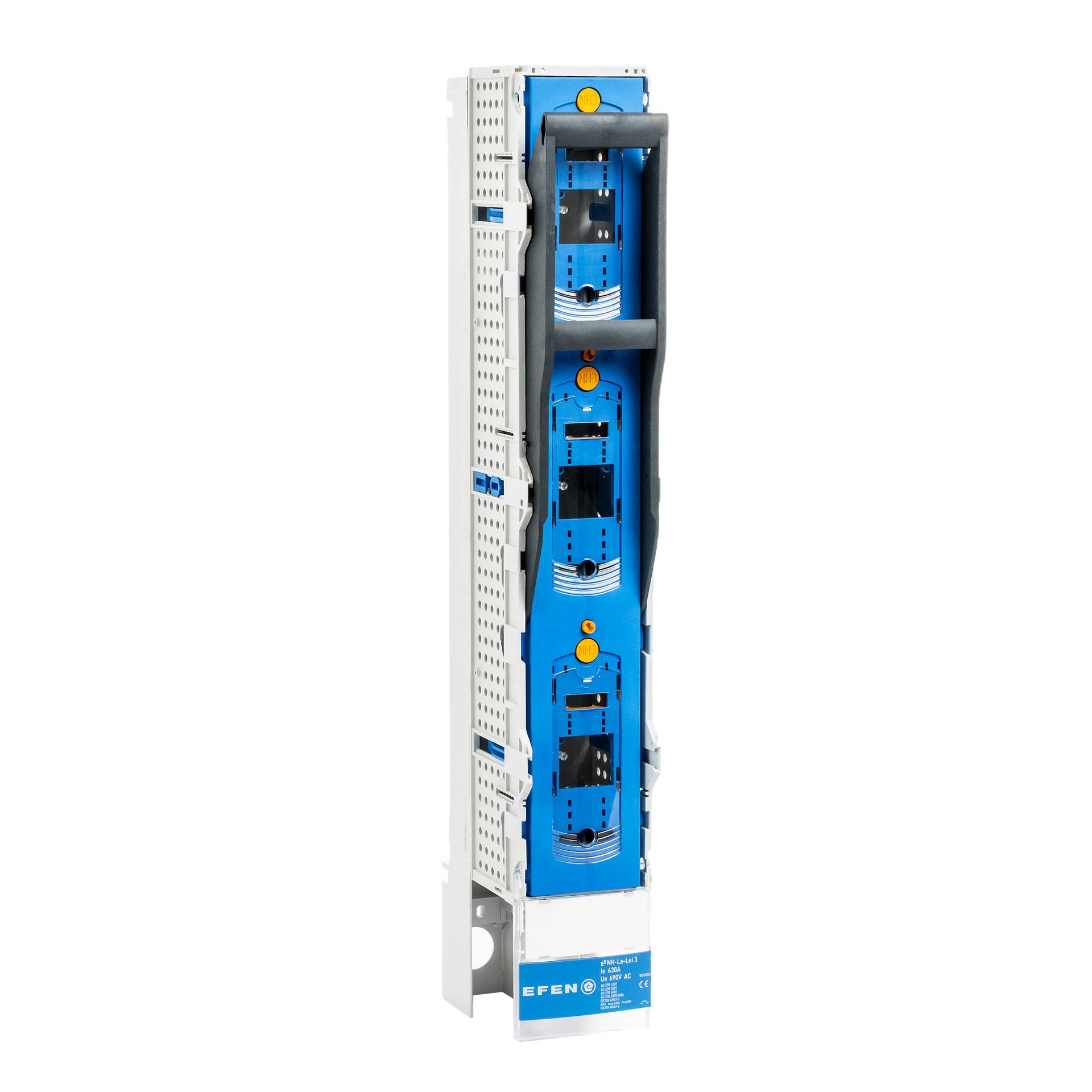

Product information "NH fuse-switch disconnectors size 3, 3P, 185mm, M12 (3-pole switchable) U6, ESÜ"
| Cable connection: | Flat connection M12 |
|---|---|
| Colour: | grey |
| Conditional rated short-circuit current Icc: | 120kA (AC500V) |

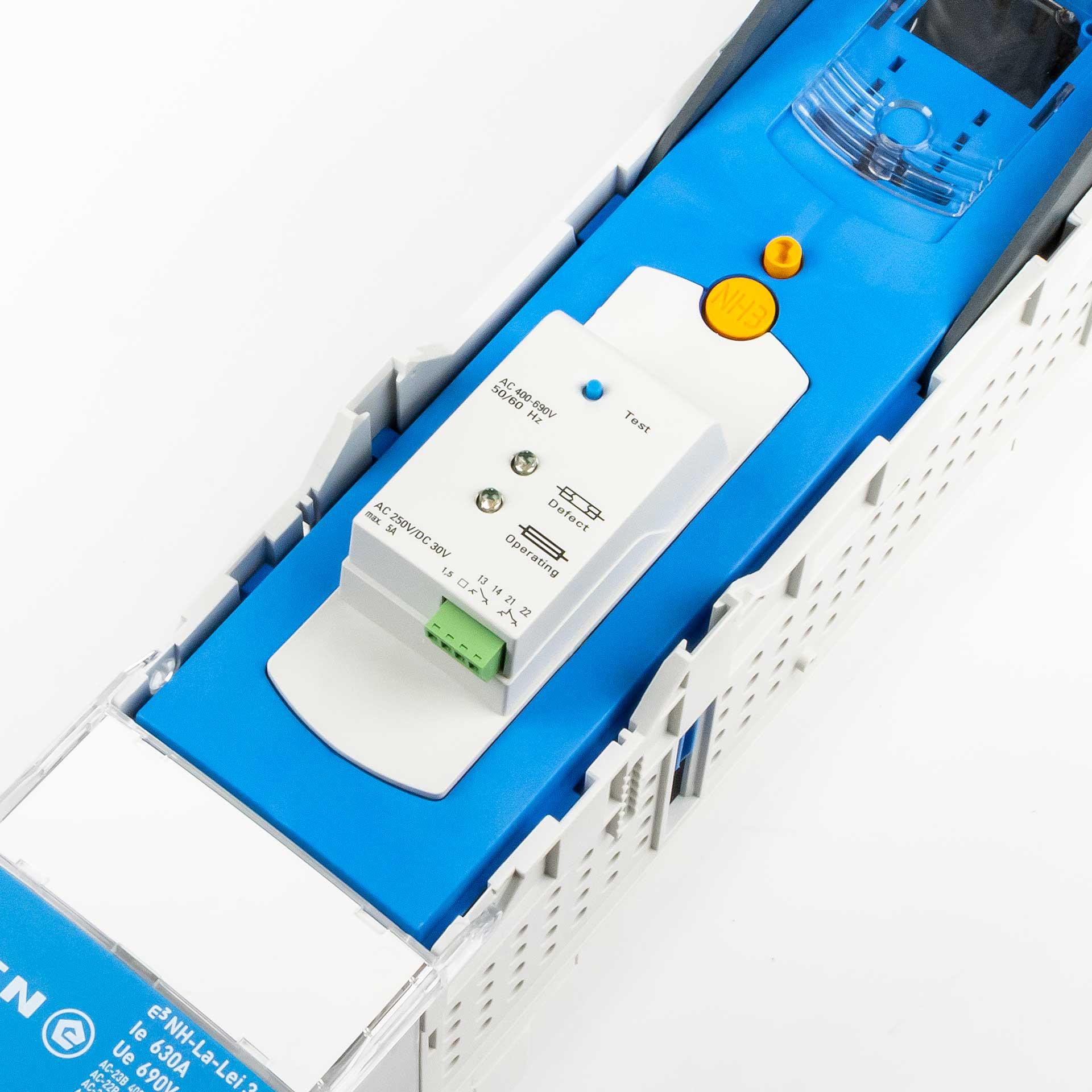

| Electronic fuse monitoring (ESÜ): | Yes |
| Max. Rated operating current Ie: | 630A |
| Max. Rated operating voltage Ue: | 690V |
| Mounting type: | 185mm system |
| Number of poles: | 3 |
| Size: | NH3 |
| Suitable for transformer installation: | No |
| Switchability: | 3-pole switchable |
| Top or bottom outlet: | below |
| With integrated feed-in connection: | No |
Accessories for NH fuse-switch disconnectors size 3, 3P, 185mm, M12 (3-pole switchable) U6, ESÜ
E³ connection set 2x 300mm²
Clamp E³ FEST 50-240 sm (1 set) rm = 35-240mm2 re = 35-300mm2 sm/se = 50-300mm2
HOOK CLAMP E3 1-3 1 set (3 pieces)
