Product information "Plastic site power distributor BLACK-BOX-10 32A"

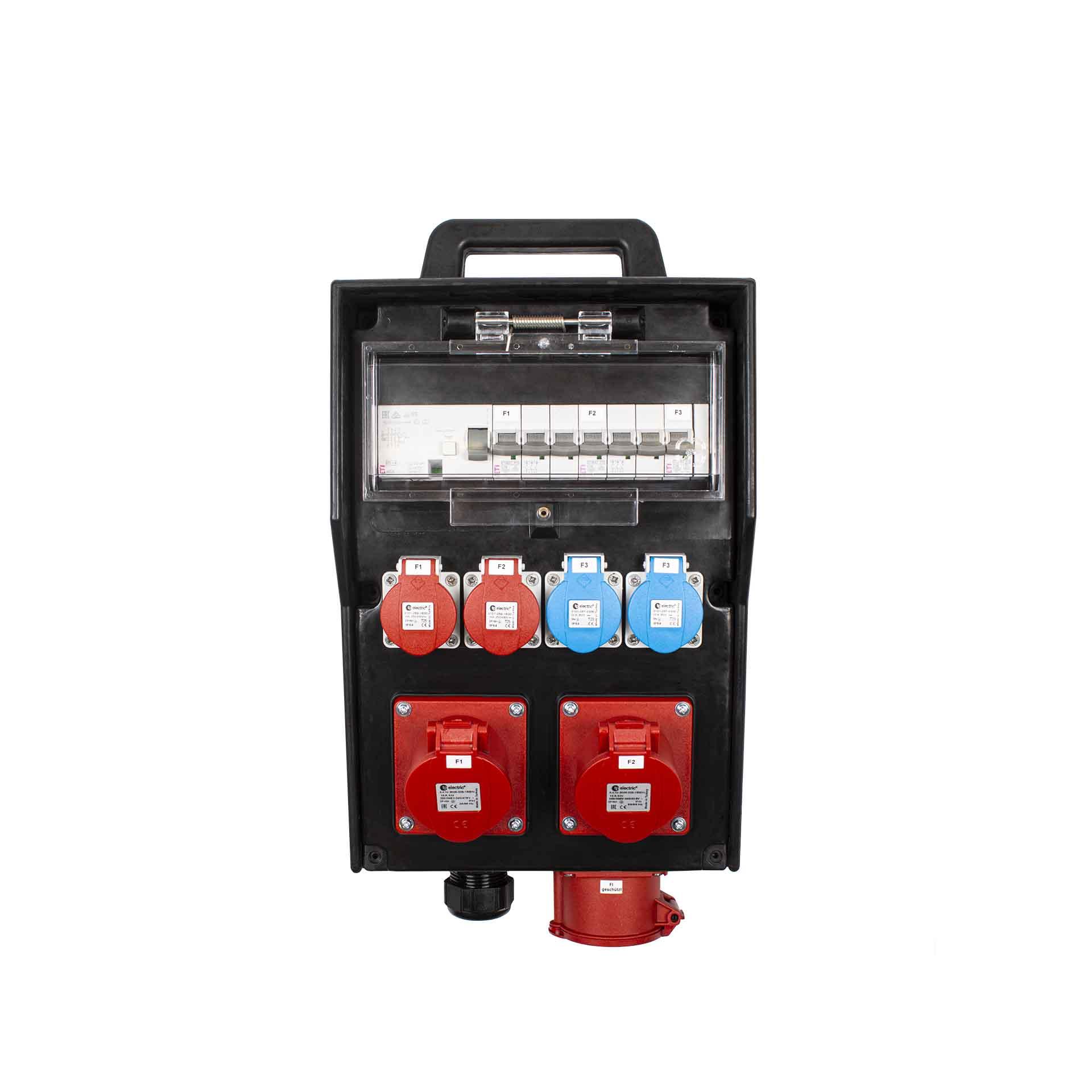

Plastic site power distributor BLACK-BOX-10 32A
Our plastic power distribution boxes are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.
Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded type certificates and parts certificates in accordance with IEC EN 61439-4
Features of the BLACK-BOX-10 32A plastic site power distribution box:
- Stackable
- The protective devices are safely protected under the lid with quick-release fastener
- Dimensions (L x W x D): 300 x 230 x 287mm
- 1 x large handle
- 1 x FI 40A type A 3PN 30mA
- 2 x LS 16A C 3P 10kA
- 2 x LS 16A C 1P 10kA
- 2 x socket outlet T25 230/400V
- 4 x socket outlet T23 230V
- 2 x socket outlet CEE 16A 400V 6h
- 1 x socket outlet CEE 32A 400V 6h
- 1 x appliance plug CEE 32A 400V 6h
Optionally available:
- Can be engraved according to your specifications
