Product information "Quick CEE socket outlet 16A 3P 6h, 1PNE 230V, straight version, nickel-plated contacts, QC system"
| Clock position: | 6h |
|---|---|
| Connection cross-section (flexible): | 1.0-2.5 mm2 |
| Connection cross-section (rigid): | 1.0-4.0 mm2 |
| Connection technology: | Screwless clamp (QC) |
| Connection type: | Quick Connect |
| Contacts: | nickel-plated |

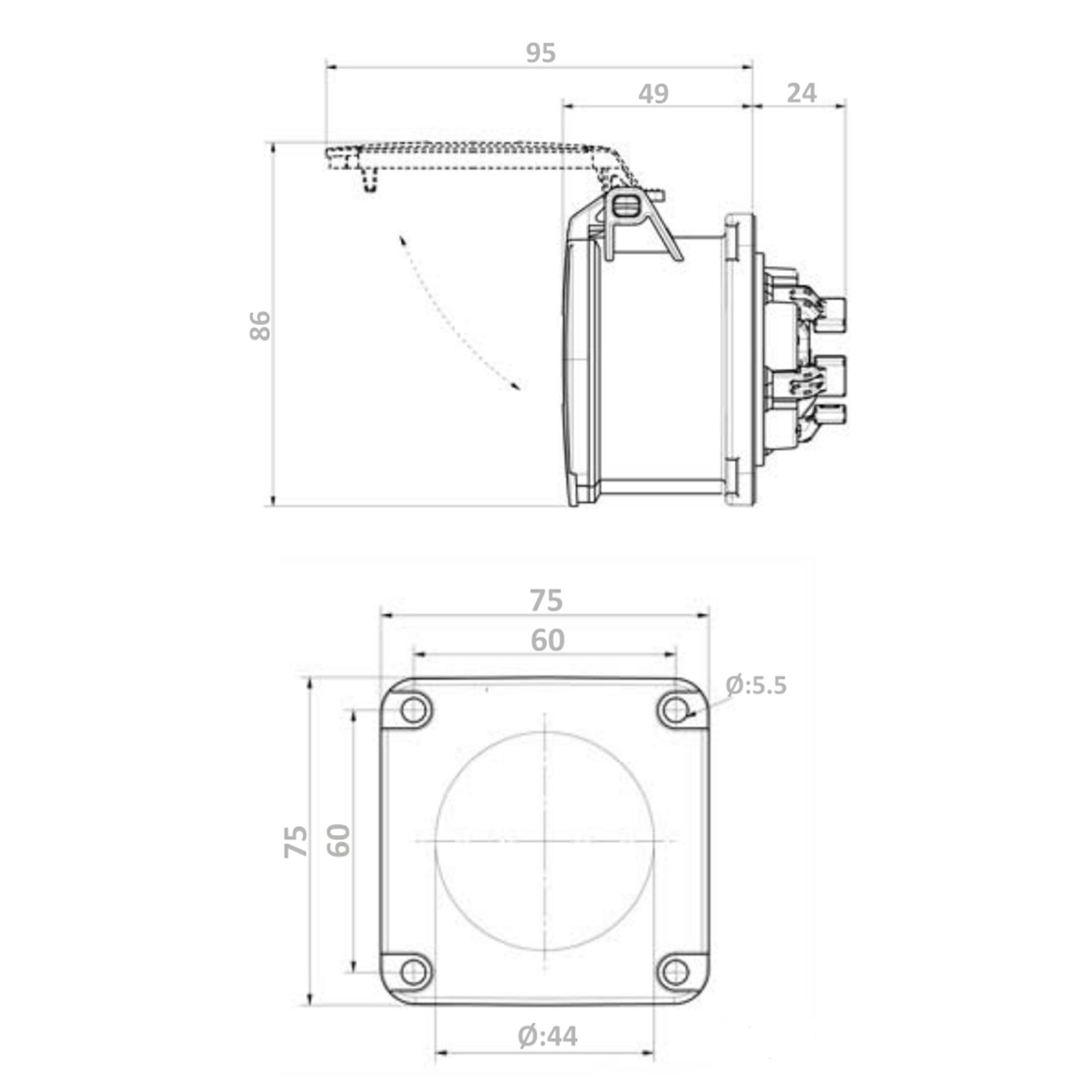

| Flange height: | 75 mm |
| Flange width: | 75 mm |
| Frequency: | 50 & 60 Hz |
| Identification colour: | blue |
| Insertion direction: | straight |
| Material: | Plastic |
| Number of poles: | 3 |
| Pole conductor connection depth max.: | 13mm |
| Protection class: | IP 44 |
| Rated current: | 16A |
| Rated voltage: | 230V |
