CHF 90.95
Do you have some questions about this product?
- Your personal contact person
- Name: Tobias Schneider
- E-Mail: tobias@normrahmen.ch
- Phone: +41 31 744 10 42
-
Head of Product Development and Consultancy, Management Board

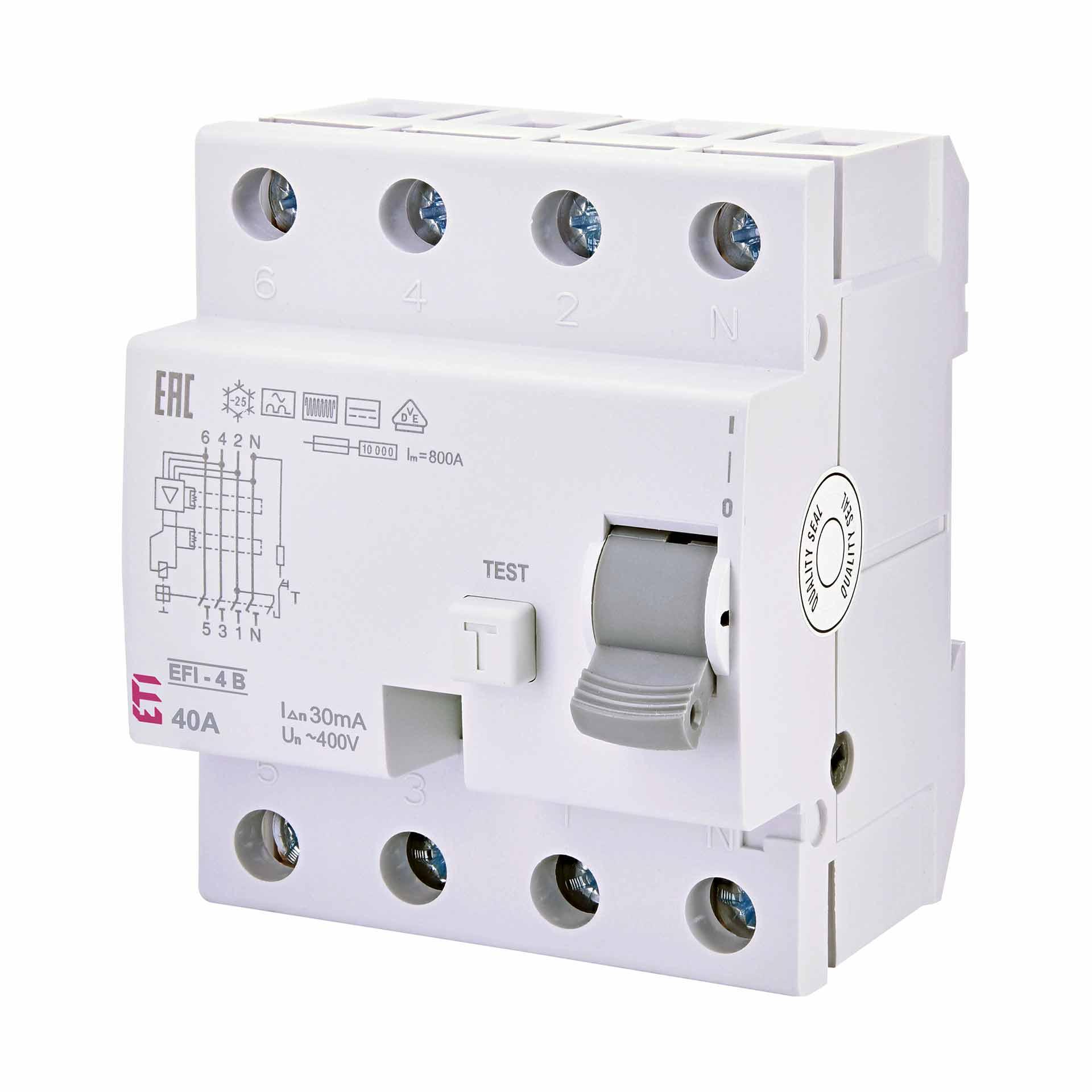

Product information "Residual current circuit-breaker, instantaneous, EFI-4, type A, 4-pole, 40A, 10kA (0.03A)"
| Frequency: | 50 & 60 Hz |
|---|---|
| Neutral conductor links: | No |
| Number of poles: | 4 |
| Number of wiring points: | 8 |
| Protection class: | IP 20 |
| Rated current: | 40A |
| Rated residual current: | 30mA |
| Rated voltage: | 415V |
| Residual current type: | A |
| Selective: | No |
| Short-circuit resistance: | 10kA |
| Short-term delayed: | No |
| Triggering behaviour: | Undelayed |
| Undelayed: | Yes |
| Width in pitch units: | 4 Module |
