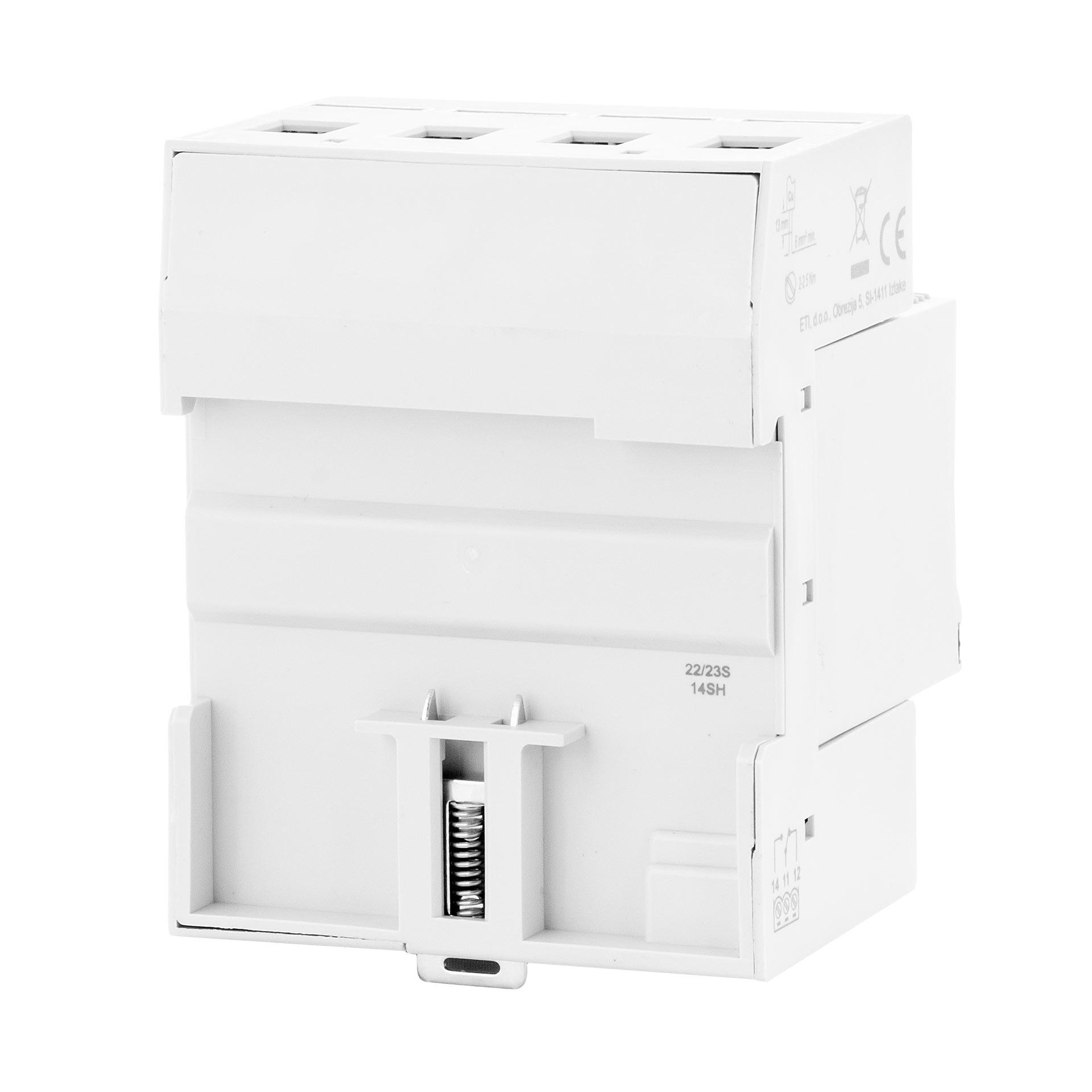

Product information "Surge arrester type 2, ETITEC V C T2 440/20 4+0 RC, (TN-S)"
| Applied technology: | MOV |
|---|---|
| I max (8/20): | 40kA |
| In (8/20): | 20kA |
| Integrated back-up fuse: | No |
| Interchangeable surge modules: | Yes |
| Leakage current free: | No |
| Net shape: | TN-S |
| No back-up fuse required until: | 125A |
| Type: | T2 |
| Uc Continuous operating voltage: | 440V |
| Up - Voltage protection level: | < 2.5kV |
| With remote signalling contact: | Yes |
