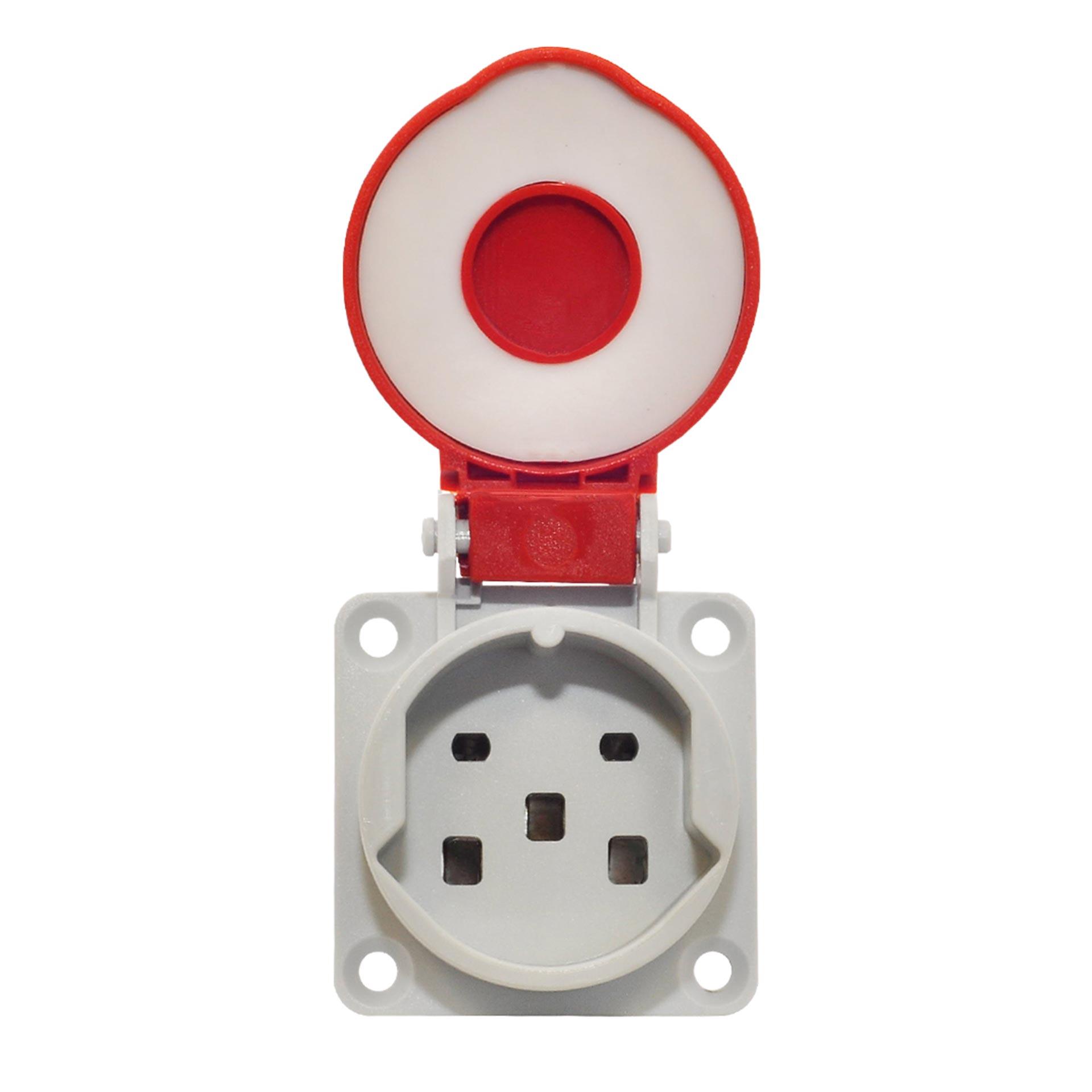

Product information "Built-in socket outlet T25 16A 5P, 3PNE 400/230V, nickel-plated contacts, screw connection"
| Connection cross-section (flexible): | 1.0-2.5 mm2 |
|---|---|
| Connection cross-section (rigid): | 1.0-4.0 mm2 |
| Connection type: | Screw connection |
| Contacts: | nickel-plated |
| Flange height: | 60 mm |
| Flange width: | 50 mm |
| Frequency: | 50 & 60 Hz |
| Identification colour: | red |
| Insertion direction: | straight |
| Material: | Plastic |
| Number of poles: | 5 |
| Number of wiring points: | 5 |
| Pole conductor connection depth max.: | 8 mm |
| Protection class: | IP 54 |
| Rated current: | 16A |
| Rated voltage: | 230/400V |
Customers also bought
Customers also viewed
Plastic site power distributor 300KS-MH-08-2 32A Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08-2 32A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 1 x socket outlet T23 16A 230V IP55 1 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 32A 5P 400V 6h IP44 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use
Plastic site power distributor 300KS-MH-08 16A Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08 16A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 2 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 16A 3P 230V 6h IP44 1 x 1 x 2.5 metre PUR cable 5x2.5mm2 with CEE 16A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All contacts of the sockets are nickel-plated Optionally available: Base frames available for mobile use
Plastic site power distributor 300KS-MH-08 32A The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded type certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08 32A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 1 x socket outlet T23 16A 230V IP55 1 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 16A 3P 230V 6h IP44 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use
Our built-in socket outlets meet the high requirements of the Swiss standard series SN 441011. Ideally suited for equipping new distribution boards or for existing distribution boards to replace old built-in socket outlets.
Content: 1 Piece (CHF 142.6920 / 30 Piece)
