Product information "Plastic site power distribution board 32A, type 300KS-MH-08, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE16/3"

Plastic site power distributor 300KS-MH-08 32A

The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.

Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded type certificates and parts certificates in accordance with IEC EN 61439-4

Features of plastic site power distributor 300KS-MH-08 32A:

  • With handle

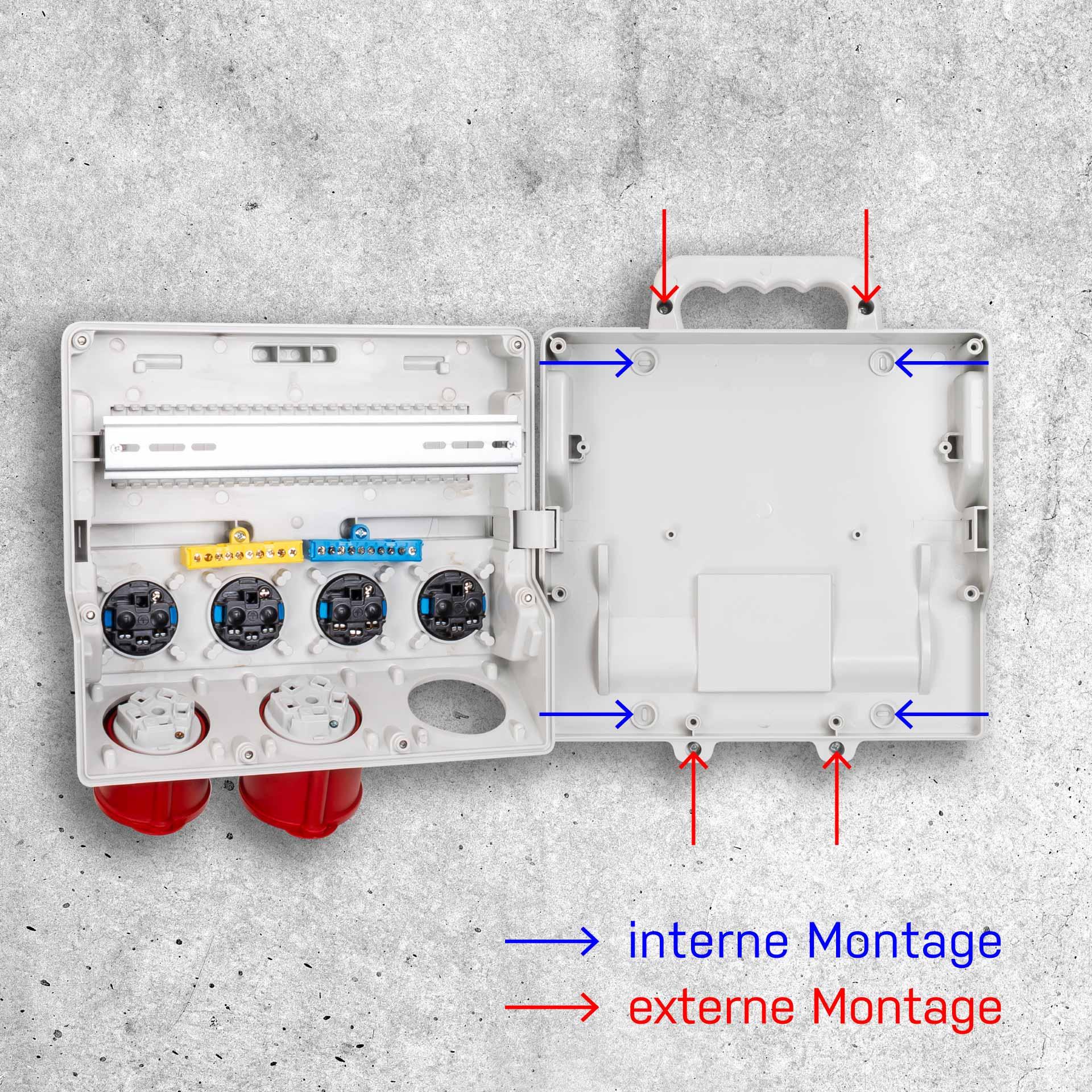

  • Direct wall mounting possible
  • Dimensions (L x W x D): 300 x 260 x 130mm
  • 1 x FI 40A type A 3PN 30mA
  • 2 x LS 16A C 3P 6kA
  • 1 x LS 16A C 1P 6kA
  • 1 x LS 13A C 1P 6kA
  • 2 x socket outlet T25 16A 230/400V IP55
  • 1 x socket outlet T23 16A 230V IP55
  • 1 x socket outlet T13 10A 230V IP55
  • 2 x socket outlet CEE 16A 5P 400V 6h IP44
  • 1 x socket outlet CEE 16A 3P 230V 6h IP44
  • 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug
  • Preparation for 2x cable gland M25 or M32
  • All socket outlet contacts are nickel-plated

Optionally available:

  • Base frames available for mobile use
Characteristic: C
Clock position: 6h
Feed-in: CEE 32A 5P 6h 400V
Frequency: 50 & 60 Hz
Halogen-free: Yes
Number of modules: 12
Number of sockets: 8
Protection class: IP 44, IP55
Rated current: 32A
Rated voltage: 230/400V
Residual current type: A
Short-circuit resistance: 6kA
Socket selection: CEE 16A 3P 6h IP44, CEE 16A 5P 6h IP44, T13 10A IP55, T25 16A IP55
With connection cable: Yes
