Product information "Plastic building site power distribution board 32A, type 300KS-MH-07, 2xT25, 1xT23, 1xT13, 1xCEE16/5, 1xCEE32/5"

Plastic site power distributor 300KS-MH-07 32A

Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.

Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4

Features of plastic site power distributor 300KS-MH-07 32A:

  • With handle

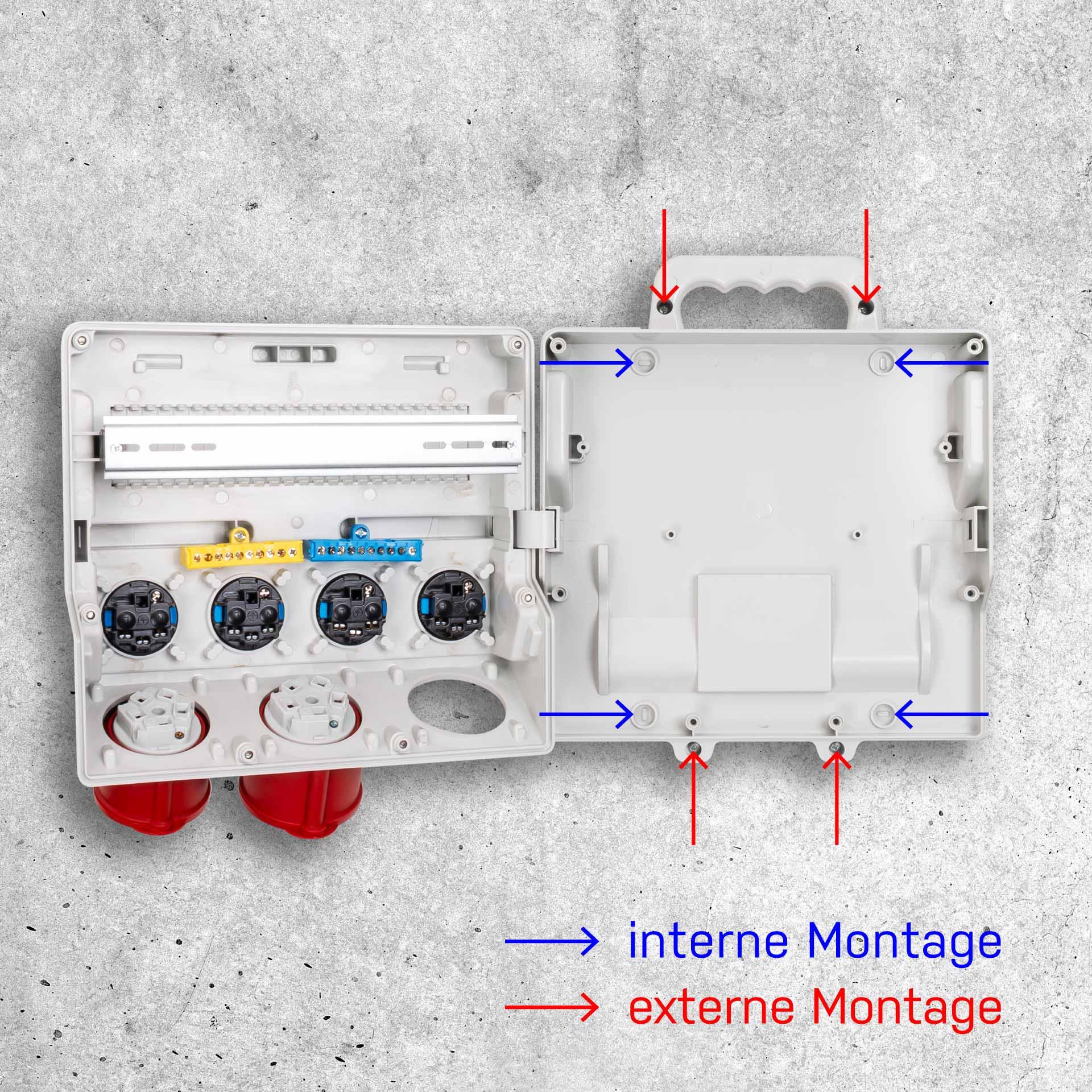

  • Direct wall mounting possible
  • Dimensions (L x W x D): 300 x 260 x 130mm
  • 1 x FI 40A type A 3PN 30mA
  • 2 x LS 16A C 3P 6kA
  • 1 x LS 16A C 1P 6kA
  • 1 x LS 13A C 1P 6kA
  • 2 x socket outlet T25 16A 230/400V IP55
  • 1 x socket outlet T23 16A 230V IP55
  • 1 x socket outlet T13 10A 230V IP55
  • 1 x socket outlet CEE 16A 5P 400V 6h IP44
  • 1 x socket outlet CEE 32A 5P 400V 6h IP44
  • 1 x appliance plug CEE 32A 5P 400V 6h IP44
  • Preparation for 2x cable gland M25 or M32
  • All socket outlet contacts are nickel-plated

Optionally available:

  • Base frames available for mobile use
Characteristic: C
Clock position: 6h
Feed-in: CEE 32A 5P 6h 400V
Frequency: 50 & 60 Hz
Halogen-free: Yes
Number of modules: 12
Number of sockets: 7
Protection class: IP 44, IP55
Rated current: 32A
Rated voltage: 230/400V
Residual current type: A
Short-circuit resistance: 6kA
Socket selection: CEE 16A 3P 6h IP44, CEE 16A 5P 6h IP44, T13 10A IP55, T25 16A IP55
With connection cable: No
Skip product gallery

Customers also bought

Hard rubber site power distributor 261S-07 32A
Hard rubber site power distributor 261S-07 32A

Hard rubber site power distributor 261S-07 32A Our hard rubber power distributors are ideal for both indoor and outdoor use. For industrial, commercial, trade and public areas. Compliance with all current regulations and standards (IEC EN-61439). The distribution boards can also be configured according to your individual requirements. Impact-resistant, corrosion-free, UV-resistant, halogen-free, flame-retardant and self-extinguishing, resistant to ageing and temperature, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded design verification and parts certificates in accordance with IEC EN 61439-4 Features of hard rubber site power distribution board 261S-07 32A: Direct wall mounting possible Dimensions (L x W x D): 380 x 260 x 150mm 1 x large handle 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 10kA 1 x LS 16A C 1P 10kA 2 x socket outlet T25 230/400V 2 x socket outlet T23 230V 2 x socket outlet CEE 16A 400V 6h 1 x socket outlet CEE 32A 400V 6h 1 x M40 cable gland Optionally available: Available without handle Base frames available for mobile use Can be engraved according to your specifications

Regular price: CHF 445.5284
Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5
Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5

Plastic site power distributor 300KS-MH-08-2 32A Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08-2 32A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 1 x socket outlet T23 16A 230V IP55 1 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 32A 5P 400V 6h IP44 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use

Regular price: CHF 183.2295
Plastic building site power distribution board 63A (10kA), type 390KS-MH-10, 2xT25, 2xT23, 2xCEE16/5, 2xCEE32/5
Plastic building site power distribution board 63A (10kA), type 390KS-MH-10, 2xT25, 2xT23, 2xCEE16/5, 2xCEE32/5

Plastic building site power distributor 390KS-MH-10 63A (10kA) Our plastic power distribution boards are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distribution board 390KS-MH-10 63A (10kA): With handle Direct wall mounting possible Dimensions (L x W x D): 390 x 300 x 130mm 1 x RCD 63A type A 3PN 30mA 1 x LS 32A C 3P 10kAkA 2 x LS 16A C 3P 10kA 1 x LS 16A C 1P 10kA 2 x socket outlet T25 16A 230/400V IP55 2 x socket outlet T23 16A 230V IP55 3 x socket outlet CEE 16A 5P 400V 6h IP44 2 x socket outlet CEE 32A 5P 400V 6h IP44 1 x 2.5 metre PUR cable 5x10mm2 with CEE 63A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use

Regular price: CHF 291.1133
Skip product gallery

Customers also viewed

Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5
Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5

Plastic site power distributor 300KS-MH-08-2 32A Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08-2 32A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 1 x socket outlet T23 16A 230V IP55 1 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 32A 5P 400V 6h IP44 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use

Regular price: CHF 183.2295
Built-in socket outlet T25 16A 5P, 3PNE 400/230V, nickel-plated contacts, screw connection
Built-in socket outlet T25 16A 5P, 3PNE 400/230V, nickel-plated contacts, screw connection

Regular price: CHF 7.5824
Surface-mounted socket outlet CEE 63A 5P 6h, 3PNE 400V, nickel-plated contacts
Surface-mounted socket outlet CEE 63A 5P 6h, 3PNE 400V, nickel-plated contacts

Regular price: CHF 44.4606
Mini auxiliary contactor 4-pole, 2S+2Ö, 3A AC15, K1-07D22 24V AC
Mini auxiliary contactor 4-pole, 2S+2Ö, 3A AC15, K1-07D22 24V AC

Content: 1 Piece (CHF 227.0100 / 10 Piece)

Regular price: CHF 22.7010

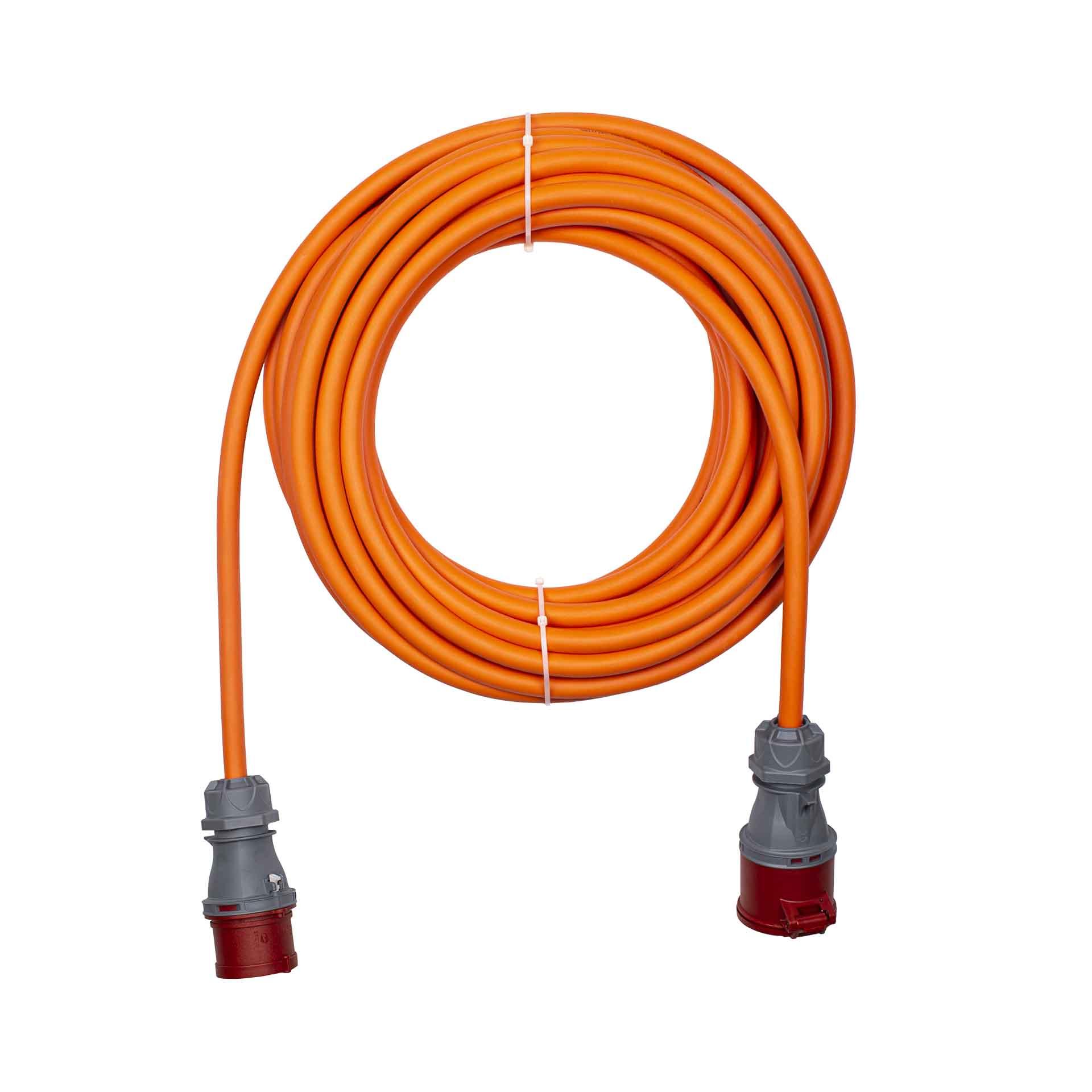

CEE extension cable 16A, 5P, 6h, IP44, 5 metres G-PUR 5x2.5mm²
CEE extension cable 16A, 5P, 6h, IP44, 5 metres G-PUR 5x2.5mm²

Regular price: CHF 41.7266
Built-in socket outlet T23 16A 3P, 1PNE 230V, nickel-plated contacts, screw connection
Built-in socket outlet T23 16A 3P, 1PNE 230V, nickel-plated contacts, screw connection

Regular price: CHF 4.7741

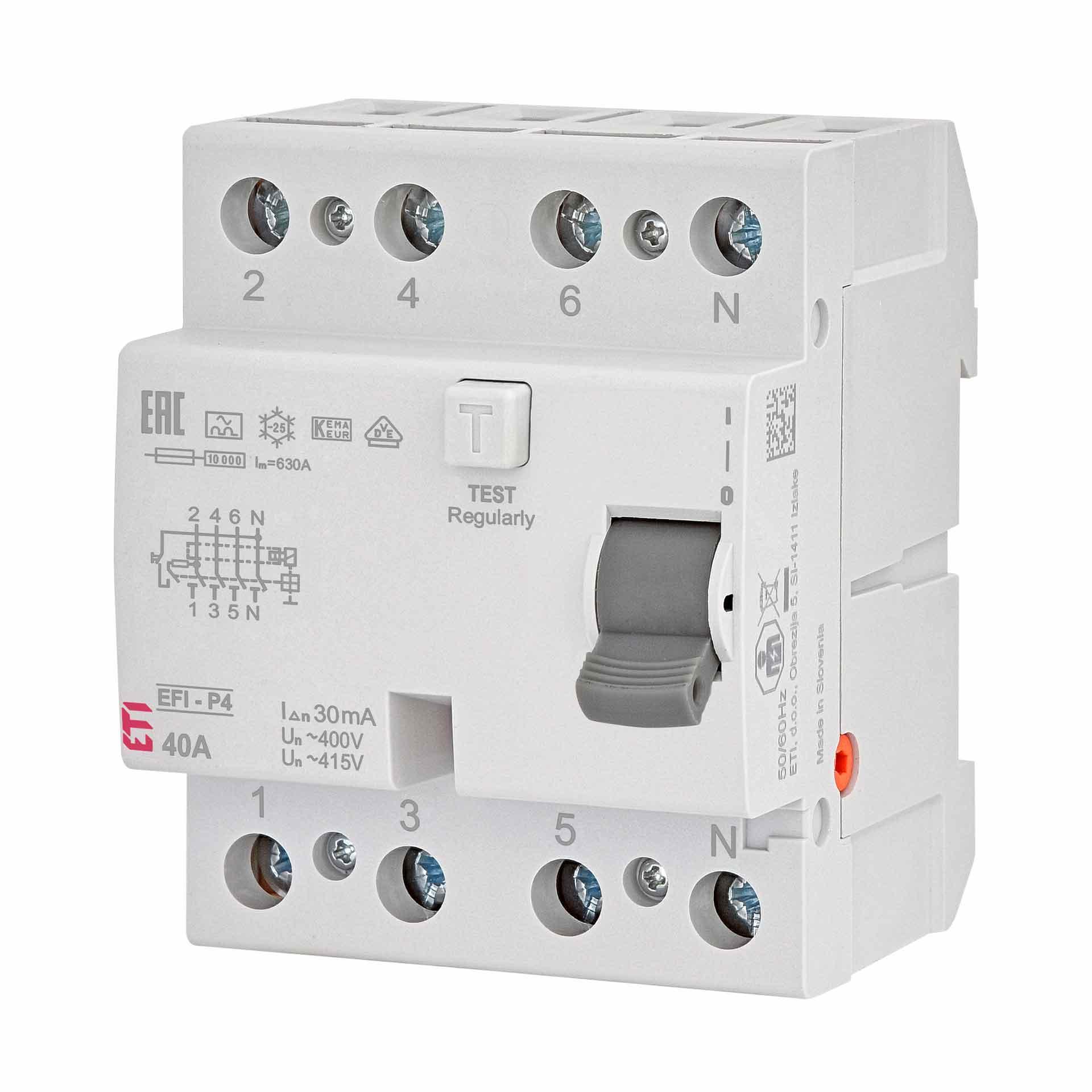

Residual current circuit-breaker, instantaneous, EFI-4, type A, 4-pole, 40A, 10kA (0.03A)
