Product information "CEE socket outlet 63A 5P 6h, 3PNE 400V, IP67, straight version, nickel-plated contacts, GT version, screw-in clamp."
| Clock position: | 6h |
|---|---|
| Connection cross-section (flexible): | 6.0-25.0 mm2 |
| Connection cross-section (rigid): | 6.0-25.0 mm2 |
| Connection technology: | Screw terminal |
| Connection type: | Screw connection |
| Contacts: | nickel-plated |
| F: | 77 mm |
| Flange height: | 107 mm |
| Flange width: | 100 mm |
| Frequency: | 50 & 60 Hz |
| Identification colour: | red |
| Insertion direction: | straight |
| Material: | Plastic |
| Number of poles: | 5 |
| Number of wiring points: | 6 |
| Phase inverter: | No |
| Pilot contact: | Yes |
| Protection class: | IP 67 |
| Rated current: | 63A |
| Rated voltage: | 400V |

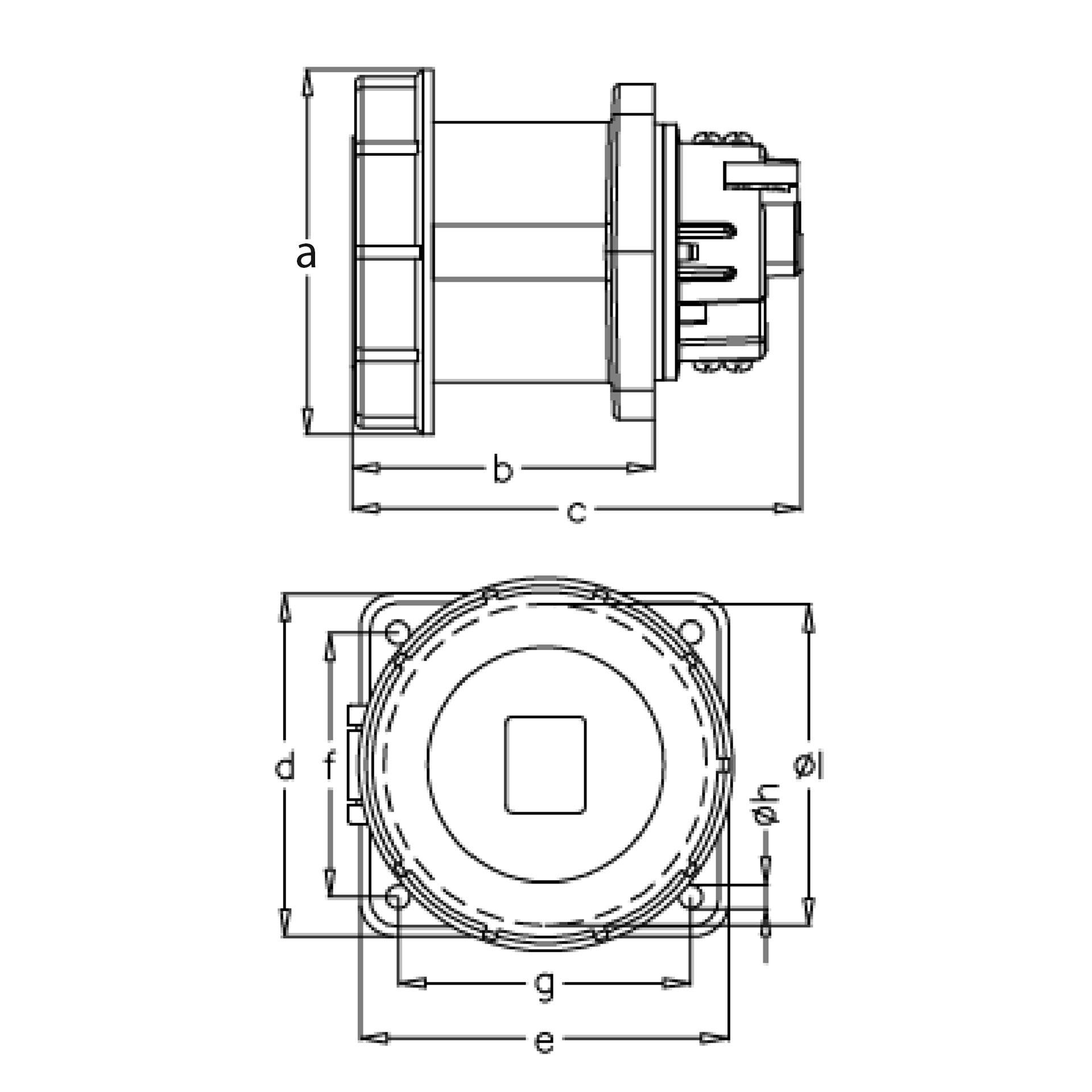

| a: | 109 mm |
| b: | 101 mm |
| c: | 129 mm |
| d: | 100 mm |
| g: | 85 mm |
| ØI: | 85 mm |
| Øh: | 7 mm |
| E: | 107 mm |
