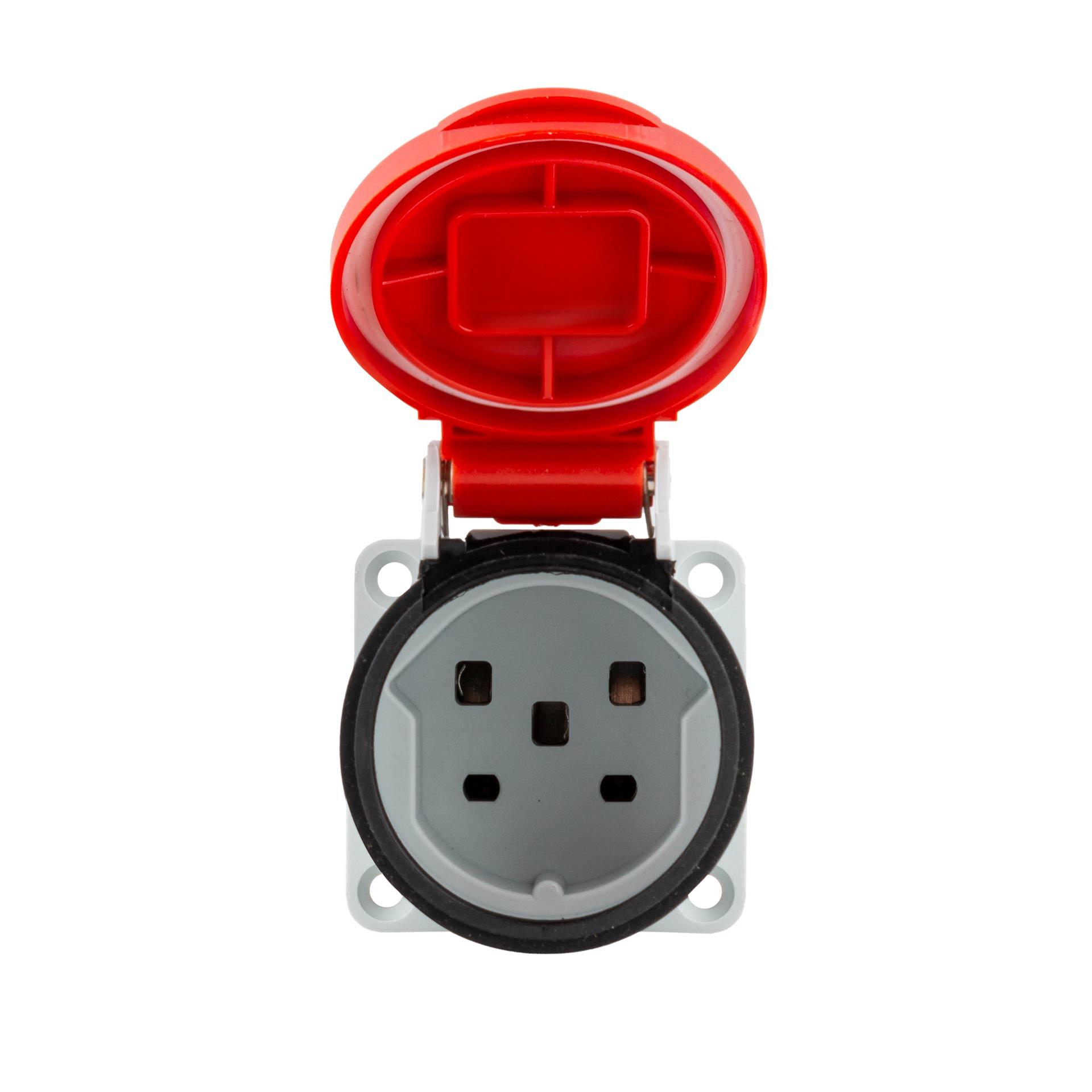

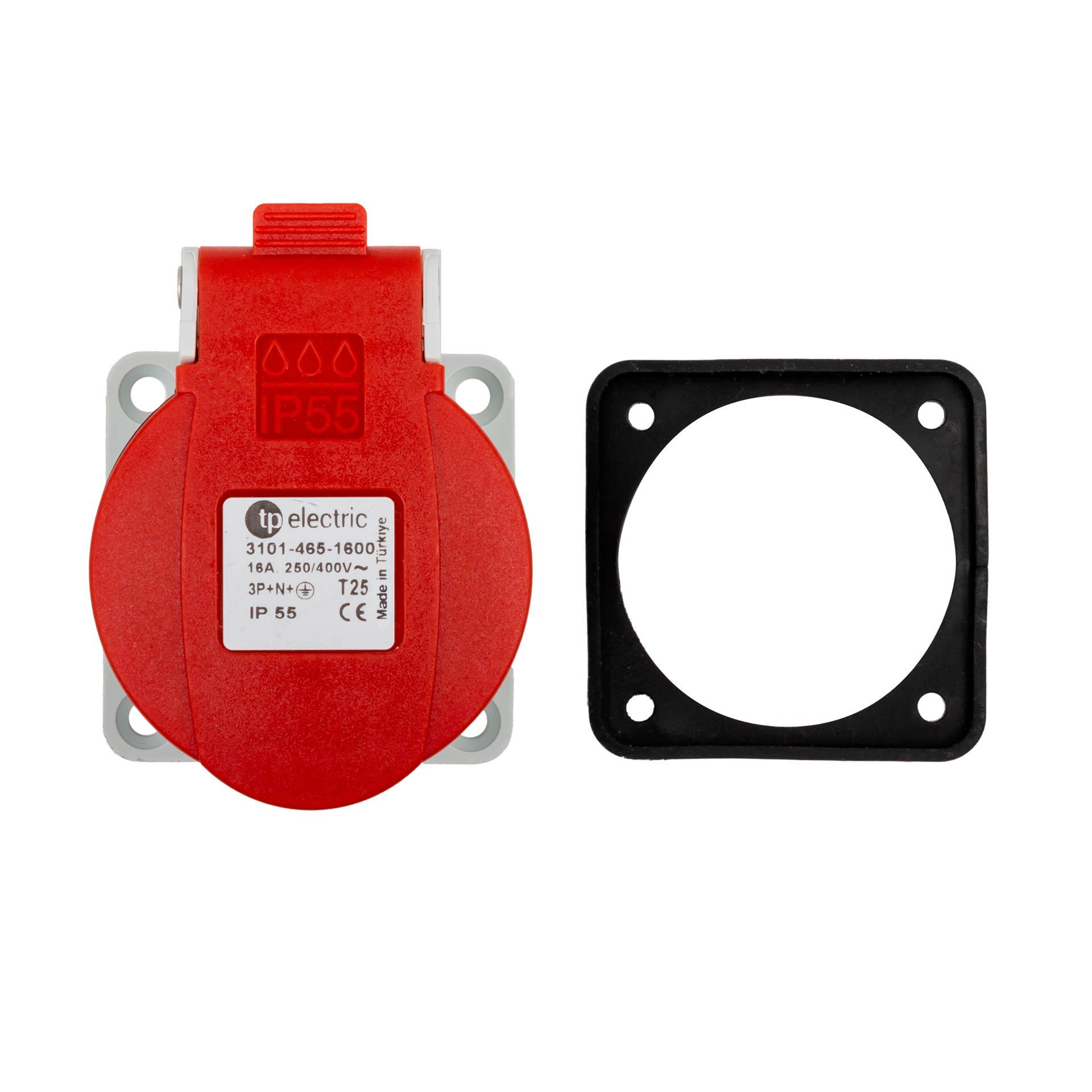

Product information "Built-in socket outlet T25 16A 5P, IP55, 3PNE 400/230V, nickel-plated contacts, screw connection, SN 441011"
| Connection cross-section (flexible): | 1.0-2.5 mm2 |
|---|---|
| Connection cross-section (rigid): | 1.0-4.0 mm2 |
| Connection technology: | Screw terminal |
| Connection type: | Screw connection |
| Contacts: | nickel-plated |
| Flange height: | 49 mm |
| Flange width: | 49 mm |
| Frequency: | 50 & 60 Hz |
| Halogen-free: | Yes |
| Identification colour: | red |
| Insertion direction: | straight |
| Number of poles: | 5 |
| Number of wiring points: | 5 |
| Pole conductor connection depth max.: | 8 mm |
| Protection class: | IP 55 |
| Rated current: | 16A |
| Rated voltage: | 230/400V |
