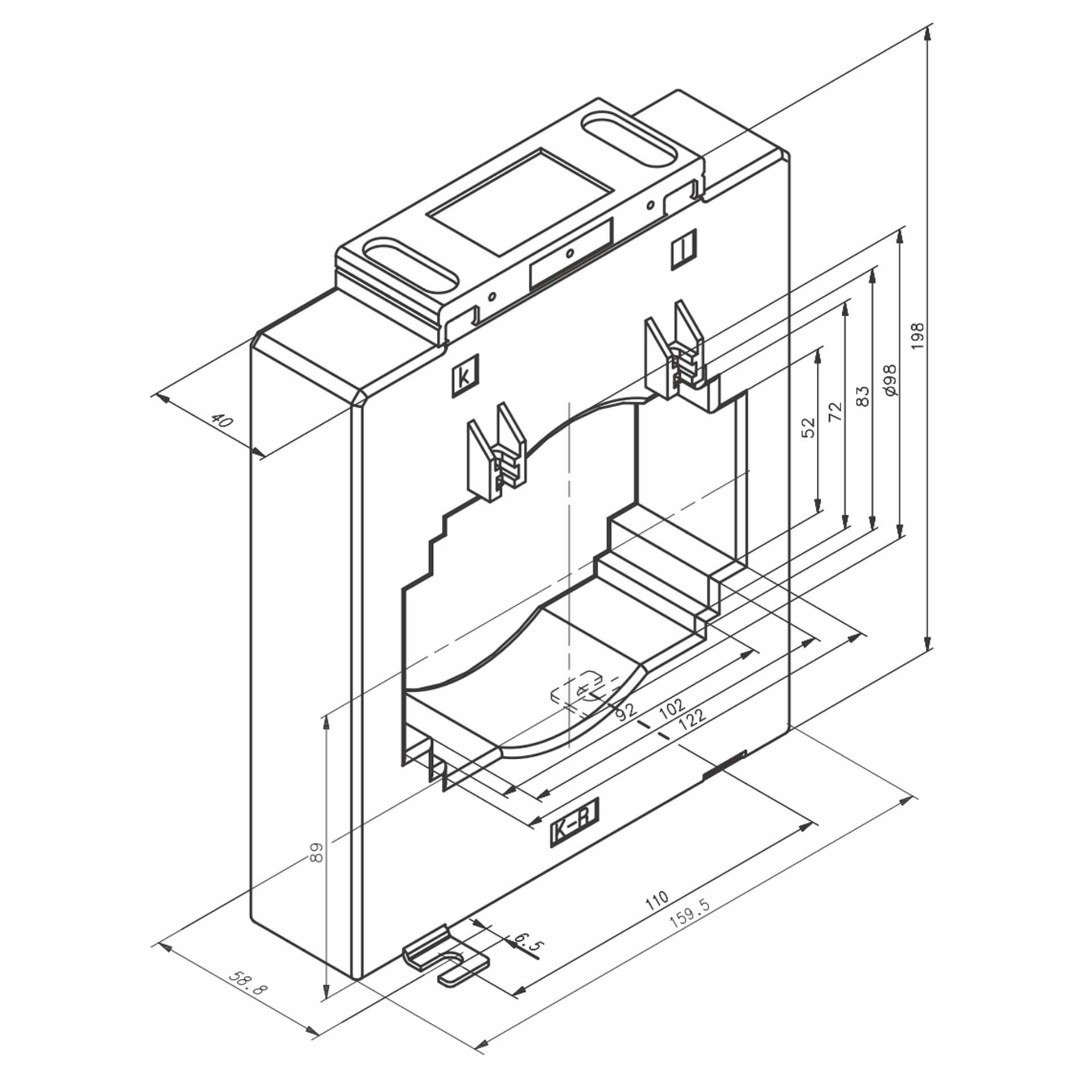

Product information "Current transformer PSA 1254 | 2500/5A, 10VA, class 0.5, 3x120x10mm / Ø98mm"
| Accuracy class: | Class 0.5 |
|---|---|
| Apparent electrical power: | 10VA |
| Calibratable: | No |
| Depth: | 40 mm |
| Dimensions (LxWxH): | 40 mm |
| Halogen-free: | Yes |
| Height: | 198 mm |
| Max. Cable diameter: | 98mm |
| Max. Copper dimension: | 3x120x10mm |
| Rated current: | 2500A |
| Transformer ratio: | 2500/5A |
| Width: | 159.5 mm |
