Product information "Energy meter EMU Professional II 3/5, M-Bus, MID B+D approval, transformer measurement 3PN"

Accuracy class: B
Bidirectional counter: Yes
Blockchain technology: Optional
Calibrated: Yes
Energy type: Active energy supply, active energy purchase & Reactive energy
Execution of the interface: M-BUS
Illuminated display: Yes
MID: MID B+D
Measurement type: Transducer measurement
Meter type: Electronic
Mounting type: REG (top-hat rail)
Permitted for billing purposes: Yes
Pulse outputs: 4
Pulse type: S0
Suitable for energy management in accordance with ISO 50001: Yes
Tariff execution: Double tariff
Width in pitch units: 5 Module
Skip product gallery

Accessories for energy meter EMU Professional II 3/5, M-Bus, MID B+D approval, transformer measurement 3PN

Current transformer EMCT 31 | 100/5A, 2.5VA, class 1, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 100/5A, 2.5VA, class 1, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 125A, 2.5VA, class 1, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 125A, 2.5VA, class 1, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 150A, 2.5VA, class 1, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 150A, 2.5VA, class 1, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 200A, 2.5VA, class 1, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 200A, 2.5VA, class 1, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 250A, 5.0VA, class 0.5, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 250A, 5.0VA, class 0.5, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 300A, 3.75VA, class 0.5, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 300A, 3.75VA, class 0.5, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 31 | 400A, 5.0VA, class 0.5, 30 x 10 mm / Ø26mm
Current transformer EMCT 31 | 400A, 5.0VA, class 0.5, 30 x 10 mm / Ø26mm

CHF 20.54
Current transformer EMCT 41 | 300A, 5.0VA, class 0.5, 40 x 10 mm / Ø31mm
Current transformer EMCT 41 | 300A, 5.0VA, class 0.5, 40 x 10 mm / Ø31mm

CHF 27.57
Current transformer EMCT 41 | 400A, 5.0VA, class 0.5, 40 x 10 mm / Ø31mm
Current transformer EMCT 41 | 400A, 5.0VA, class 0.5, 40 x 10 mm / Ø31mm

CHF 27.57
Current transformer EMCT 41 | 500A, 7.5VA, class 0.5, 40 x 10 mm / Ø31mm
Current transformer EMCT 41 | 500A, 7.5VA, class 0.5, 40 x 10 mm / Ø31mm

CHF 27.57
Current transformer EMCT 41 | 600A, 7.5VA, class 0.5, 40 x 10 mm / Ø31mm
Current transformer EMCT 41 | 600A, 7.5VA, class 0.5, 40 x 10 mm / Ø31mm

CHF 27.57
Current transformer EMCT 51 | 600A, 15.0VA, class 0.5, 50 x 10 mm / Ø41mm
Current transformer EMCT 51 | 600A, 15.0VA, class 0.5, 50 x 10 mm / Ø41mm

CHF 45.89
Current transformer EMCT 51 | 800A, 20.0VA, class 0.5, 50 x 10 mm / Ø41mm
Current transformer EMCT 51 | 800A, 20.0VA, class 0.5, 50 x 10 mm / Ø41mm

CHF 45.89
Current transformer EMCT 61 | 600A, 15.0VA, class 0.5, 60 x 10 mm / Ø51mm
Current transformer EMCT 61 | 600A, 15.0VA, class 0.5, 60 x 10 mm / Ø51mm

CHF 41.08
Current transformer EMCT 61 | 800A, 20.0VA, class 0.5, 60 x 10 mm / Ø51mm
Current transformer EMCT 61 | 800A, 20.0VA, class 0.5, 60 x 10 mm / Ø51mm

CHF 41.08
Current transformer EMCT 61 | 1000A, 20.0VA, class 0.5, 60 x 10 mm / Ø51mm
Current transformer EMCT 61 | 1000A, 20.0VA, class 0.5, 60 x 10 mm / Ø51mm

CHF 41.08
Current transformer EMCT 81 | 800A, 10.0VA, class 0.5, 80 x 10 mm / Ø65mm
Current transformer EMCT 81 | 800A, 10.0VA, class 0.5, 80 x 10 mm / Ø65mm

CHF 48.64
Current transformer EMCT 81 | 1000A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm
Current transformer EMCT 81 | 1000A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm

CHF 48.64
Current transformer EMCT 81 | 1250A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm
Current transformer EMCT 81 | 1250A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm

CHF 48.64
Current transformer EMCT 81 | 1600A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm
Current transformer EMCT 81 | 1600A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm

CHF 48.64
Current transformer EMCT 81 | 2000A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm
Current transformer EMCT 81 | 2000A, 20.0VA, class 0.5, 80 x 10 mm / Ø65mm

CHF 48.64
DIN rail mounting for current transformer EMCT 31
DIN rail mounting for current transformer EMCT 31

CHF 3.03
DIN rail mounting for current transformer EMCT 41
DIN rail mounting for current transformer EMCT 41

CHF 7.03
Skip product gallery

Customers also bought

NH fuse size 000 80A, characteristic gL-gG 500V
NH fuse size 000 80A, characteristic gL-gG 500V

Content: 1 Piece (CHF 18.29 / 3 Piece)

CHF 6.10
Energy meter EMU Professional II 3/100, M-Bus, MID B+D approval, 100A direct measurement 3PN
Energy meter EMU Professional II 3/100, M-Bus, MID B+D approval, 100A direct measurement 3PN

The 3-phase bidirectional meter EMU Professional 3/100 M-Bus for DIN rail mounting has four S0 pulse outputs and is suitable for energy management in accordance with ISO 50001 and energy cost billing. - DIN rail three-phase meter for direct connection - Bidirectional meter - 4x S0 pulse output (active energy supply, active energy consumption, reactive energy) - MID B+D approval for energy cost billing - Suitable for energy management in accordance with ISO 50001 - 2-tariff (day / night), tariff switching via 230V signal - Graphic display for easy reading and configuration Key technical data: Top-hat rail three-phase meter, bidirectional meter for supply and consumption 3x230/400V, 5(100)A, 50 Hz, accuracy class B (1%) Direct connection up to 100A, installation width: 5 HP (90mm) Illuminated graphic LCD 38x28mm (WxH) MID B+D ex works for billing purposes Retrievable measured values (display + M-Bus interface): Active energy consumption kWh total, tariff 1, tariff 2 Active energy supply kWh total, tariff 1, tariff 2 Reactive energy kvarh total, tariff 1, tariff 2 Voltage L1 / L2 / L3 Current total and per phase L1 / L2 / L3 Active power total + and per phase L1 / L2 / L3 Reactive power total + and per phase L1 / L2 / L3 Apparent power total + and per phase L1 / L2 / L3 CosPhi L1 / L2 / L3 Mains frequency Hz Configuration: S0 Pulse rate and time e.g.e.g. 1 / 10 / 100 / 1000 / 10,000 pulses per kWh configurable via buttons Metas - Certified

CHF 372.94
NH fuse size 1 200A, characteristic gL-gG 500V
NH fuse size 1 200A, characteristic gL-gG 500V

Content: 1 Piece (CHF 42.81 / 3 Piece)

CHF 14.27
NH fuse size 000 63A, characteristic gL-gG 500V
NH fuse size 000 63A, characteristic gL-gG 500V

Content: 1 Piece (CHF 17.20 / 3 Piece)

CHF 5.73
Branch terminal DIN35 10mm², 2-conductor, grey
Branch terminal DIN35 10mm², 2-conductor, grey

Branch terminal without thrust piece, grub screws with slot, nickel-plated brass metal parts, continuous anti-spread slider for conductors, 4-digit labelling option, for 2 conductors

Content: 1 Piece (CHF 68.10 / 20 Piece)

CHF 3.41
Branch terminal DIN35 6mm², 2-conductor, grey
Branch terminal DIN35 6mm², 2-conductor, grey

Branch terminal without thrust piece, grub screws with slot, nickel-plated brass metal parts, continuous anti-spread slider for conductors, 4-digit labelling option, for 2 conductors

Content: 1 Piece (CHF 54.91 / 20 Piece)

CHF 2.75
Skip product gallery

Customers also viewed

Energy meter EMU Professional II 3/100, M-Bus, MID B+D approval, 100A direct measurement 3PN
Energy meter EMU Professional II 3/100, M-Bus, MID B+D approval, 100A direct measurement 3PN

The 3-phase bidirectional meter EMU Professional 3/100 M-Bus for DIN rail mounting has four S0 pulse outputs and is suitable for energy management in accordance with ISO 50001 and energy cost billing. - DIN rail three-phase meter for direct connection - Bidirectional meter - 4x S0 pulse output (active energy supply, active energy consumption, reactive energy) - MID B+D approval for energy cost billing - Suitable for energy management in accordance with ISO 50001 - 2-tariff (day / night), tariff switching via 230V signal - Graphic display for easy reading and configuration Key technical data: Top-hat rail three-phase meter, bidirectional meter for supply and consumption 3x230/400V, 5(100)A, 50 Hz, accuracy class B (1%) Direct connection up to 100A, installation width: 5 HP (90mm) Illuminated graphic LCD 38x28mm (WxH) MID B+D ex works for billing purposes Retrievable measured values (display + M-Bus interface): Active energy consumption kWh total, tariff 1, tariff 2 Active energy supply kWh total, tariff 1, tariff 2 Reactive energy kvarh total, tariff 1, tariff 2 Voltage L1 / L2 / L3 Current total and per phase L1 / L2 / L3 Active power total + and per phase L1 / L2 / L3 Reactive power total + and per phase L1 / L2 / L3 Apparent power total + and per phase L1 / L2 / L3 CosPhi L1 / L2 / L3 Mains frequency Hz Configuration: S0 Pulse rate and time e.g.e.g. 1 / 10 / 100 / 1000 / 10,000 pulses per kWh configurable via buttons Metas - Certified

CHF 372.94
Surface-mounted distributor without door "ACT-12", IP40, 1x12 module (12M)
Surface-mounted distributor without door "ACT-12", IP40, 1x12 module (12M)

CHF 40.47
EMU M-Centre (file logger), DHCP, RJ45 service port, RS485, USB, integrated modem
EMU M-Centre (file logger), DHCP, RJ45 service port, RS485, USB, integrated modem

CHF 874.53
4.pole leading for switch-disconnector for LTS63(80) V, for floor mounting and in-line installation
4.pole leading for switch-disconnector for LTS63(80) V, for floor mounting and in-line installation

CHF 10.81

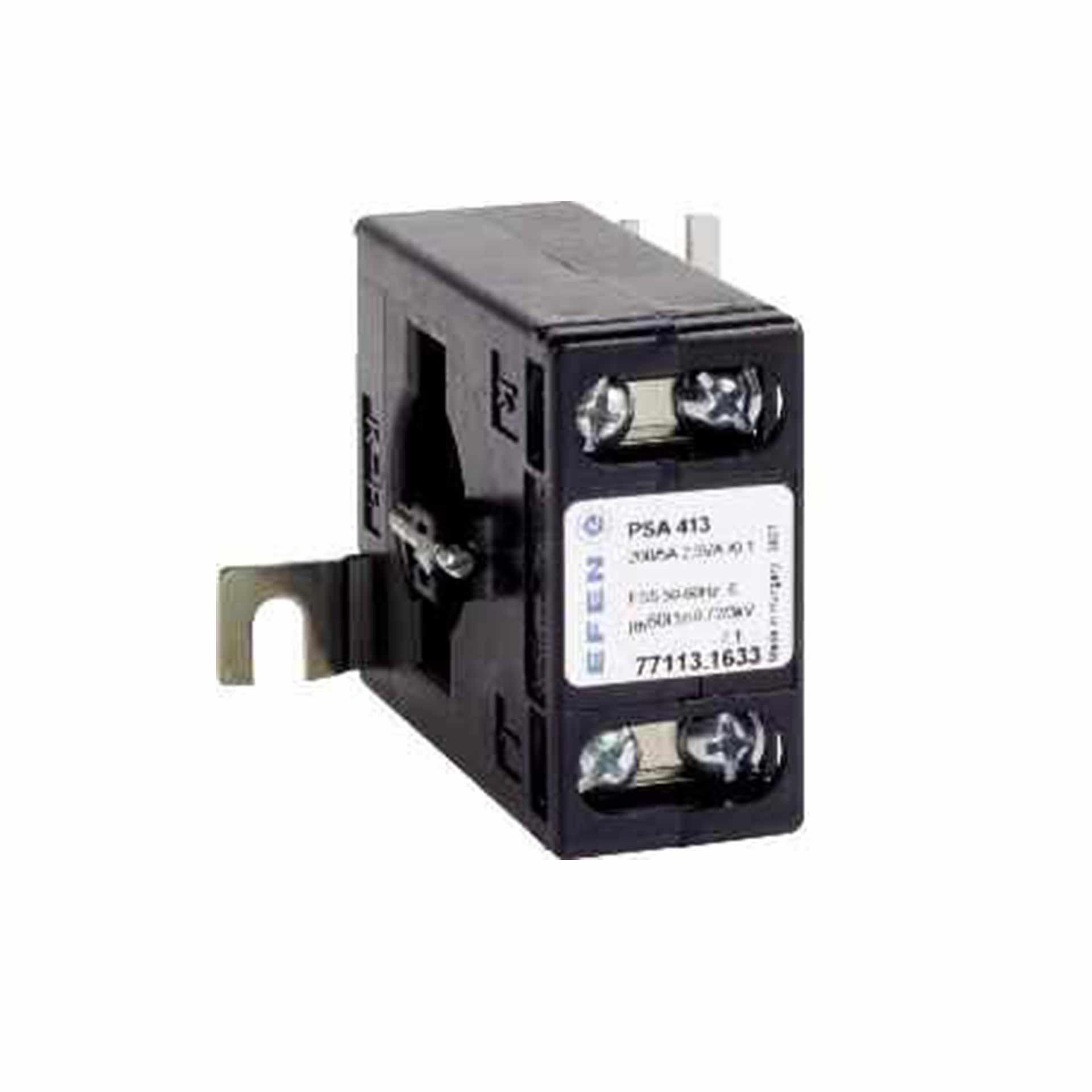

Current transformer PSA 413 | 800/5A, 5VA, class 0.5, 40x12mm / Ø28mm
