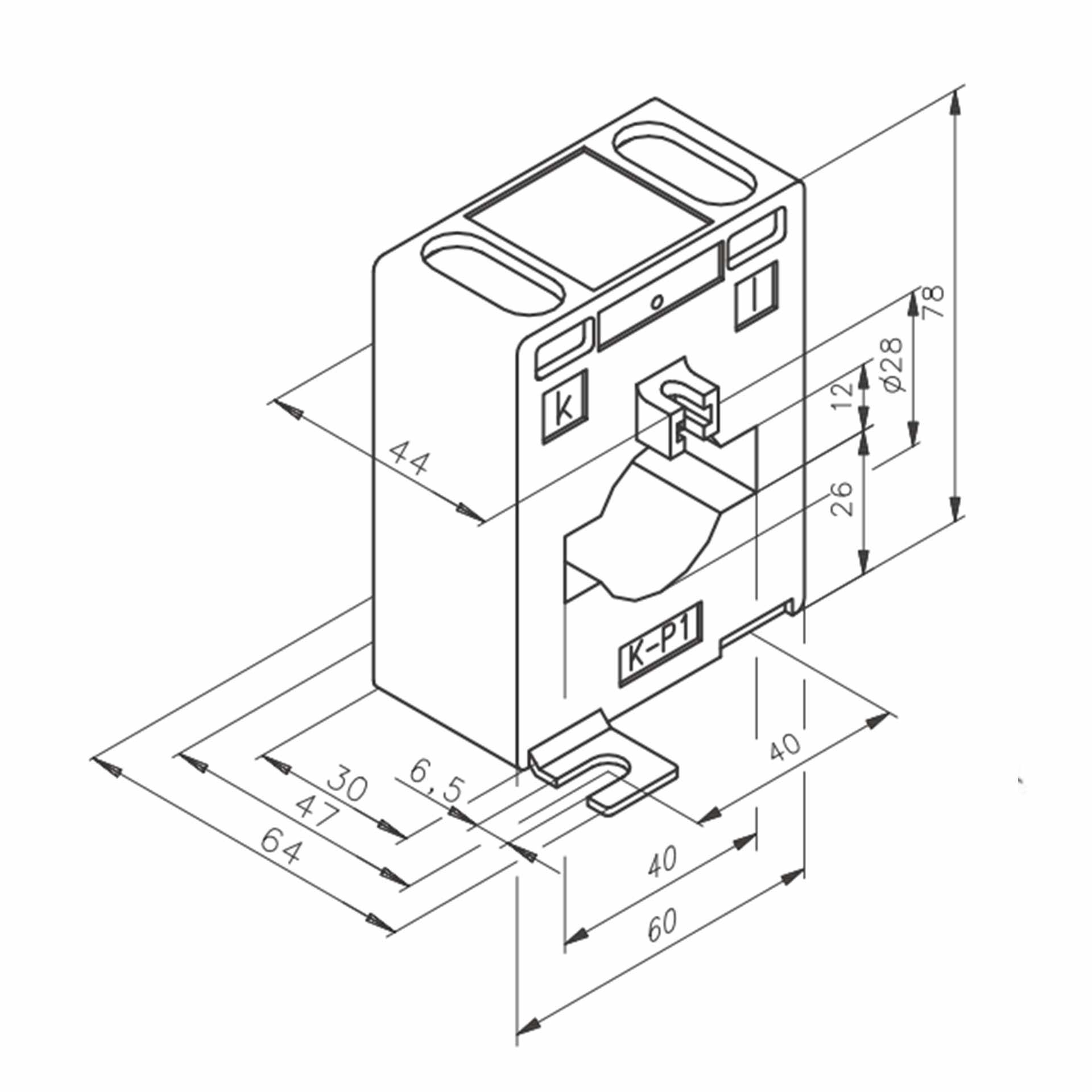

Product information "Current transformer PSA 413 | 800/5A, 5VA, class 0.5, 40x12mm / Ø28mm"
| Accuracy class: | Class 0.5 |
|---|---|
| Apparent electrical power: | 5VA |
| Calibratable: | No |
| Depth: | 30 mm |
| Dimensions (LxWxH): | 30 mm |
| Halogen-free: | Yes |
| Height: | 78 mm |
| Max. Cable diameter: | 28mm |
| Max. Copper dimension: | 40x10mm, 40x12mm |
| Rated current: | 800A |
| Transformer ratio: | 800/5A |
| Width: | 60 mm |
