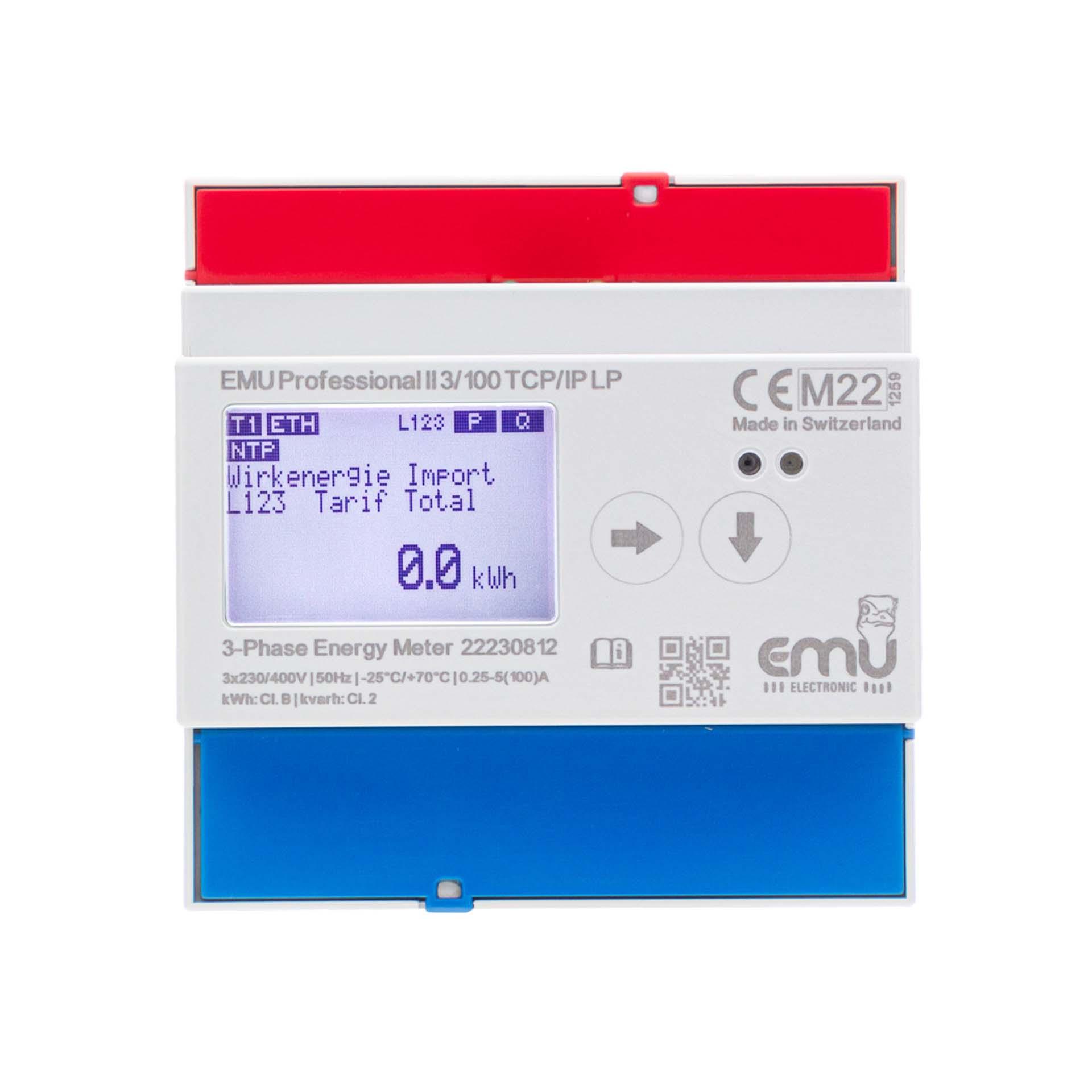

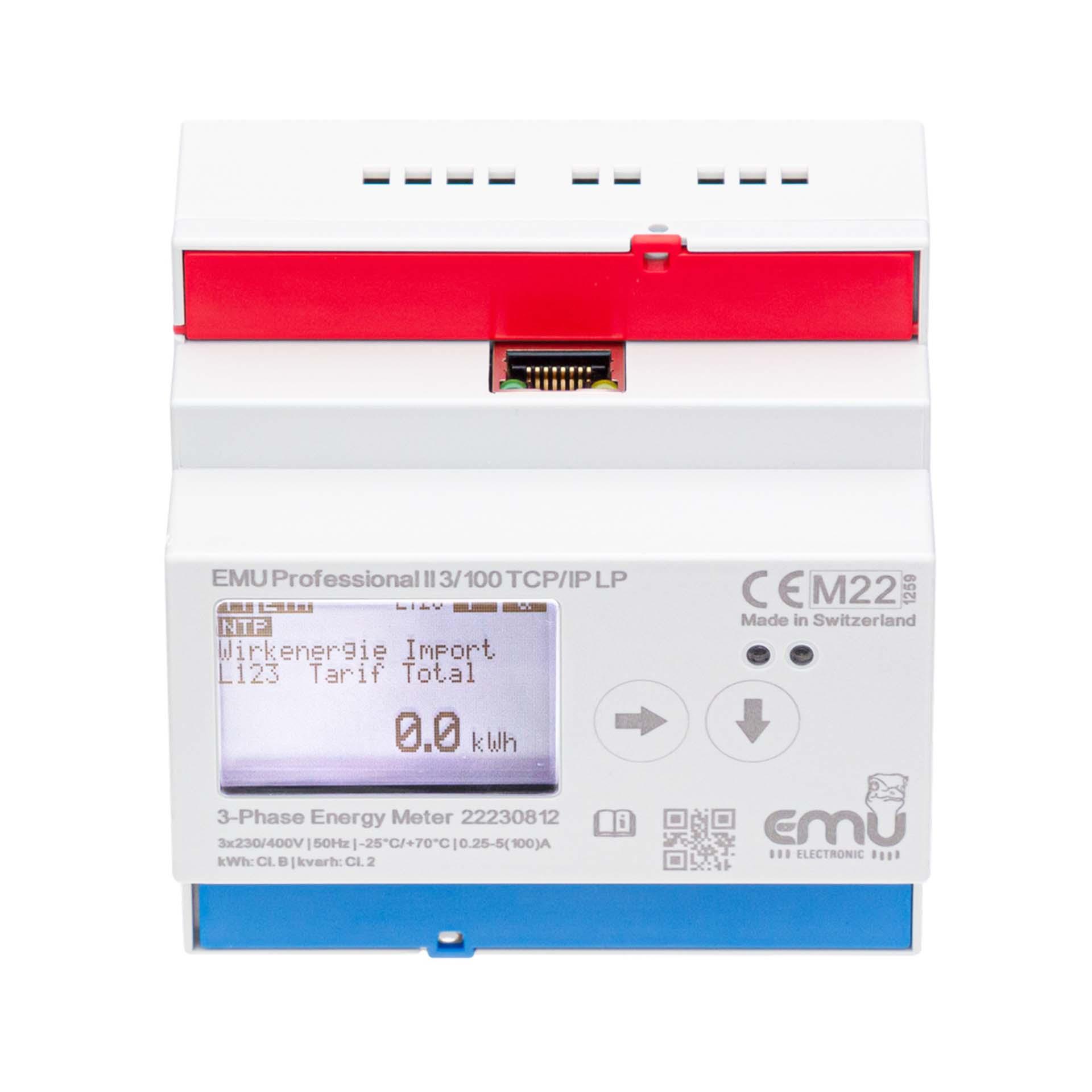

Product information "Energy meter EMU Professional II 3/100, TCP/IP LP, MID B+D and PTB-A 50.7 approval, 100A 3PN"
| Accuracy class: | B |
|---|---|
| Authorisation: | MID B+D & PTB-A.50.7 |
| Bidirectional counter: | Yes |
| Blockchain technology: | Yes |
| Energy type: | Active energy supply, active energy purchase & Reactive energy |
| Execution of the interface: | TCP/IP (Ethernet / network) |
| Illuminated display: | Yes |
| MID: | MID B+D |
| Maximum current (Imax): | 100A |
| Measurement type: | Direct measurement |
| Meter type: | Electronic |
| Mounting type: | REG (top-hat rail) |
| Permitted for billing purposes: | Yes |
| Polar type: | Four-wire |
| Pulse outputs: | 4 |
| Pulse type: | S0 |
| Suitable for energy management in accordance with ISO 50001: | Yes |
| Tariff execution: | Double tariff |
