Product information "Hard rubber site power distributor 130BS-01 16A PRO"

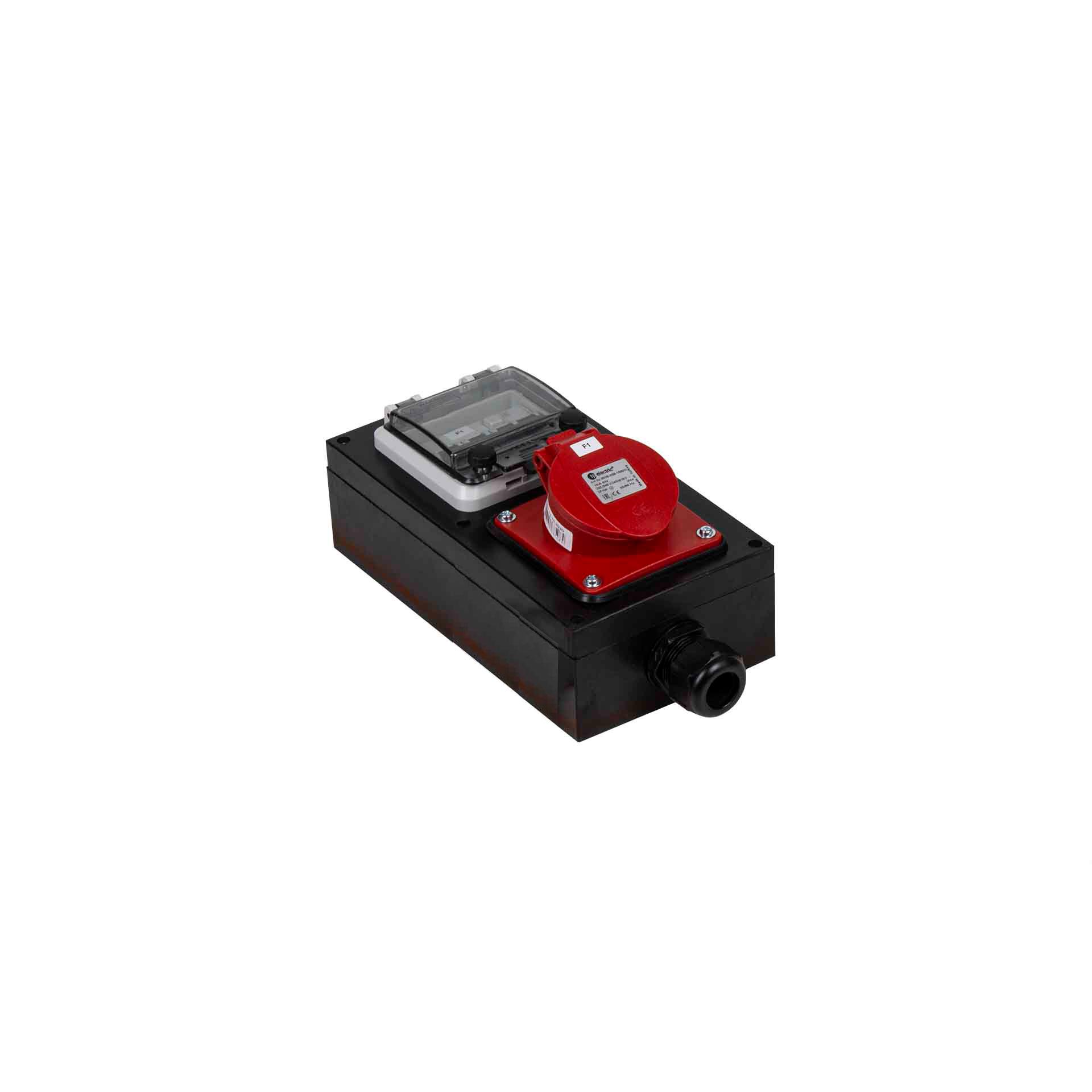

Hard rubber construction site power distributor 130BS-01 16A PRO
Our hard rubber power distributors are ideal for both indoor and outdoor use. For industrial, commercial, trade and public areas. Compliance with all current regulations and standards (IEC EN-61439). The distribution boards can also be configured according to your individual requirements.
Impact-resistant, corrosion-free, UV-resistant, halogen-free, flame-retardant and self-extinguishing, ageing and temperature-resistant, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded design verification and parts certificates in accordance with IEC EN 61439-4
Features of hard rubber site power distributor 130BS-01 16A PRO:
- Direct wall mounting possible
- Dimensions (L x W x D): 230 x 130 x 70mm
- 1 x FI-LS 16A type A 3PN 30mA
- 1 x CEE 16A 400V 6h socket outlet
- 1 x M32 cable gland
| Cable entry: | Screw connection |
|---|---|
| Cable strain relief: | Yes |
| Clock position: | 6h |
| Colour: | black |
| Depth: | 70 mm |
| Frequency: | 50 & 60 Hz |
| Insertion direction: | angled |
| Length: | 230 mm |
| Material: | Hard rubber (butyl rubber) |
| Number of implementations: | 1 |
| Number of poles: | 5 |
| Number of sockets: | 1 |
| Protection class: | IP 44 |
| Rated current: | 16A |
| Rated voltage: | 400V |
| Thread: | M32 |
| Width: | 130 mm |
