CHF 746.8837
Do you have some questions about this product?
- Your personal contact person
- Name: Tobias Schneider
- E-Mail: tobias@normrahmen.ch
- Phone: +41 31 744 10 42
-
Head of Product Development and Consultancy, Management Board

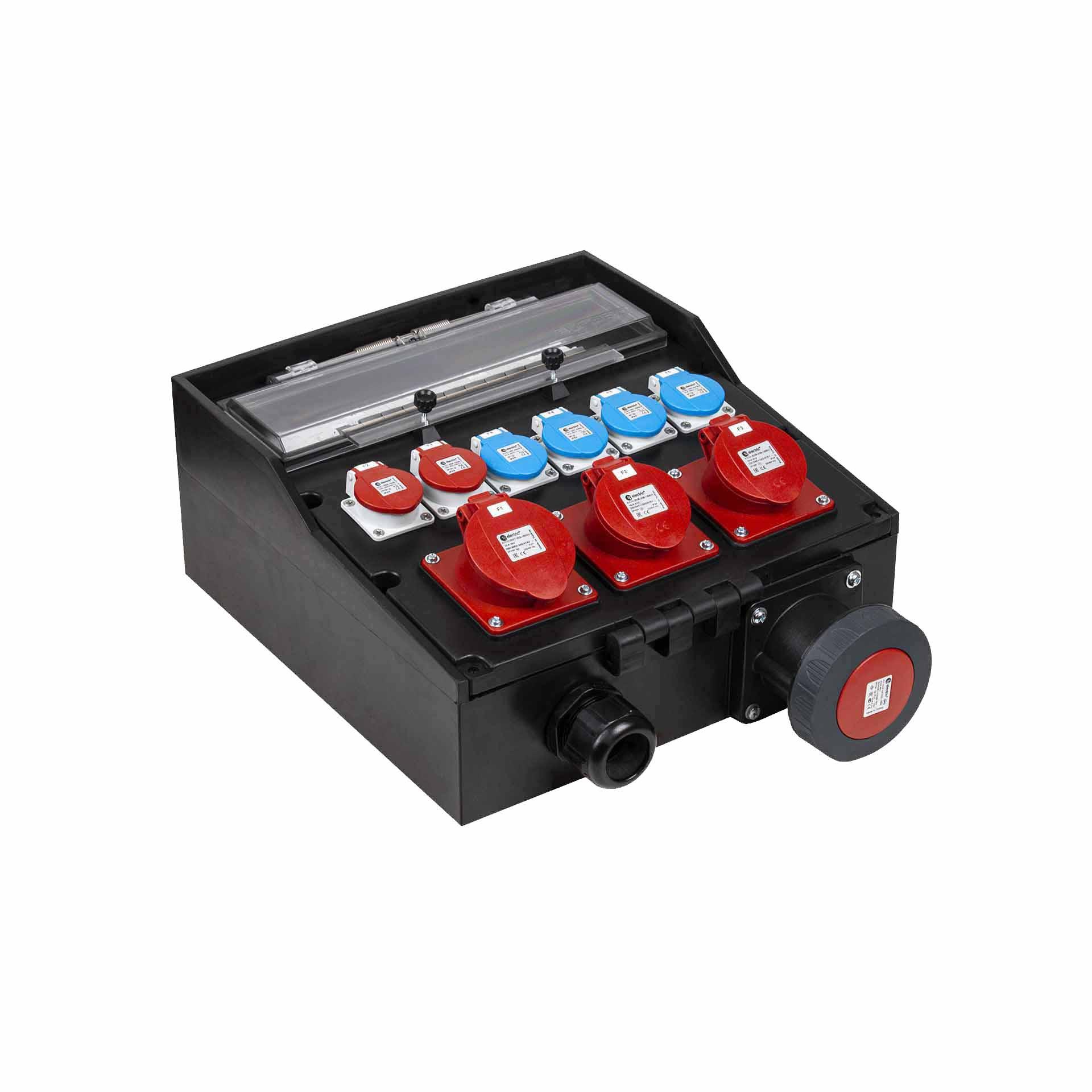

Product information "Hard rubber site power distributor 371S-10 63A"
Hard rubber site power distributor 371S-10 63A
Our hard rubber power distributors are ideal for both indoor and outdoor use. For industrial, commercial, trade and public areas. Compliance with all current regulations and standards (IEC EN-61439). The distribution boards can also be configured according to your individual requirements.
Impact-resistant, corrosion-free, UV-resistant, halogen-free, flame-retardant and self-extinguishing, ageing and temperature-resistant, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded design verification and parts certificates in accordance with IEC EN 61439-4
Features of hard rubber site power distribution board 371S-10 63A:
- Direct wall mounting possible
- Dimensions (L x W x D): 380 x 370 x 170mm
- 1 x large handle
- 1 x RCD 63A type A 3PN 30mA
- 1 x LS 32A C 3P 10kA
- 2 x LS 16A C 3P 10kA
- 2 x LS 16A C 1P 10kA
- 2 x socket outlet T25 230/400V
- 4 x socket outlet T23 230V
- 2 x socket outlet CEE 16A 400V 6h
- 1 x socket outlet CEE 32A 400V 6h
- 1 x socket outlet CEE 63A 400V 6h
- 1 x M50 cable gland
Optionally available:
- Available without handle
- Base frames available for mobile use
- Can be engraved according to your specifications
