Product information "Plastic building site power distribution board 63A (10kA), type 390KS-MH-10, 2xT25, 2xT23, 2xCEE16/5, 2xCEE32/5"

Plastic building site power distributor 390KS-MH-10 63A (10kA)

Our plastic power distribution boards are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.

Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4

Features of plastic site power distribution board 390KS-MH-10 63A (10kA):

  • With handle
  • Direct wall mounting possible
  • Dimensions (L x W x D): 390 x 300 x 130mm
  • 1 x RCD 63A type A 3PN 30mA
  • 1 x LS 32A C 3P 10kAkA
  • 2 x LS 16A C 3P 10kA
  • 1 x LS 16A C 1P 10kA
  • 2 x socket outlet T25 16A 230/400V IP55
  • 2 x socket outlet T23 16A 230V IP55
  • 3 x socket outlet CEE 16A 5P 400V 6h IP44
  • 2 x socket outlet CEE 32A 5P 400V 6h IP44
  • 1 x 2.5 metre PUR cable 5x10mm2 with CEE 63A 5P 6h 400V plug
  • Preparation for 2x cable gland M25 or M32
  • All socket outlet contacts are nickel-plated

Optionally available:

  • Base frames available for mobile use
Characteristic: C
Clock position: 6h
Feed-in: CEE 63A 5P 6h 400V
Frequency: 50 & 60 Hz
Halogen-free: Yes
Number of modules: 14
Number of sockets: 9
Protection class: IP 44, IP55
Rated current: 63A
Rated voltage: 230/400V
Residual current type: A
Short-circuit resistance: 10kA
Socket selection: CEE 16A 5P 6h IP44, CEE 32A 5P 6h IP44, T23 16A IP55, T25 16A IP55
With connection cable: Yes
Skip product gallery

Customers also bought

Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5
Plastic site power distribution board 32A, type 300KS-MH-08-2, 2xT25, 1xT23, 1xT13, 2xCEE16/5, 1xCEE32/5

Plastic site power distributor 300KS-MH-08-2 32A Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distributor 300KS-MH-08-2 32A: With handle Direct wall mounting possible Dimensions (L x W x D): 300 x 260 x 130mm 1 x FI 40A type A 3PN 30mA 2 x LS 16A C 3P 6kA 1 x LS 16A C 1P 6kA 1 x LS 13A C 1P 6kA 2 x socket outlet T25 16A 230/400V IP55 1 x socket outlet T23 16A 230V IP55 1 x socket outlet T13 10A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 1 x socket outlet CEE 32A 5P 400V 6h IP44 1 x 2.5 metre PUR cable 5x6mm2 with CEE 32A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All socket outlet contacts are nickel-plated Optionally available: Base frames available for mobile use

Regular price: CHF 183.2295
Power distributor empty housing IP66 - 6 modules, 130x220mm, halogen-free
Power distributor empty housing IP66 - 6 modules, 130x220mm, halogen-free

Regular price: CHF 13.8368
Installation contactor 2-pole, 20A (AC1, 230V), RD20-11 230V AC/DC
Installation contactor 2-pole, 20A (AC1, 230V), RD20-11 230V AC/DC

Regular price: CHF 25.4932
Retaining screw with 1/8 twist lock, sealable
Retaining screw with 1/8 twist lock, sealable

Content: 1 Piece (CHF 729.7000 / 500 Piece)

Regular price: CHF 1.4594
Built-in socket outlet T23 16A 3P, 1PNE 230V, nickel-plated contacts, screw connection
Built-in socket outlet T23 16A 3P, 1PNE 230V, nickel-plated contacts, screw connection

Regular price: CHF 4.7741
Built-in socket outlet T25 16A 5P, IP55, 3PNE 400/230V, nickel-plated contacts, screw connection, SN 441011
Built-in socket outlet T25 16A 5P, IP55, 3PNE 400/230V, nickel-plated contacts, screw connection, SN 441011

Our built-in socket outlets meet the high requirements of the Swiss SN 441011 series of standards and are ideal for equipping new distribution boards or for replacing old built-in socket outlets in existing distribution boards.

Content: 1 Piece (CHF 207.5520 / 30 Piece)

Regular price: CHF 6.9184
Skip product gallery

Customers also viewed

Folding base frame for site power distributor, colour light grey RAL 7035
Folding base frame for site power distributor, colour light grey RAL 7035

Regular price: CHF 96.4770
PUR cable 5x10.00 mm2 3LNPE
PUR cable 5x10.00 mm2 3LNPE

Content: 1 metres (CHF 433.2100 / 25 metres)

Regular price: CHF 17.3284
Plastic construction site power distributor 63A (10kA), type 570KS-MH-14, 2xT25,6xT23,2xCEE16/5,2xCEE32/5,1xCEE63/5
Plastic construction site power distributor 63A (10kA), type 570KS-MH-14, 2xT25,6xT23,2xCEE16/5,2xCEE32/5,1xCEE63/5

Plastic site power distributor 570KS-MH-14 63A (10kA) Our plastic power distribution boards are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements. Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4 Features of plastic site power distribution board 390KS-MH-10 63A (10kA): With handle Direct wall mounting possible Dimensions (L x W x D): 570 x 380 x 240mm 1 x RCD 63A type A 3PN 30mA 2 x LS 32A C 3P 10kAkA 1 x LS 16A C 3P 10kA 1 x FI 40A Type A 3PN 30mA 1 x LS 16A C 3P 10kA 3 x LS 16A C 1P 10kA 2 x socket outlet T25 16A 230/400V IP55 6 x socket outlet T23 16A 230V IP55 2 x socket outlet CEE 16A 5P 400V 6h IP44 2 x socket outlet CEE 32A 5P 400V 6h IP44 1 x socket outlet CEE 63A 5P 400V 6h IP67 1 x 2.5 metre PUR cable 5x10mm2 with CEE 63A 5P 6h 400V plug Preparation for 2x cable gland M25 or M32 All contacts of the sockets are nickel-plated Optionally available: Base frames available for mobile use

Regular price: CHF 427.5355
Hard rubber site power distributor 130BS-01 16A PRO
Hard rubber site power distributor 130BS-01 16A PRO

Hard rubber construction site power distributor 130BS-01 16A PRO Our hard rubber power distributors are ideal for both indoor and outdoor use. For industrial, commercial, trade and public areas. Compliance with all current regulations and standards (IEC EN-61439). The distribution boards can also be configured according to your individual requirements. Impact-resistant, corrosion-free, UV-resistant, halogen-free, flame-retardant and self-extinguishing, ageing and temperature-resistant, oil and acid-resistant, very good chemical resistance, graphite black Ral 9011, IP44, completely ready for connection, recorded design verification and parts certificates in accordance with IEC EN 61439-4 Features of hard rubber site power distributor 130BS-01 16A PRO: Direct wall mounting possible Dimensions (L x W x D): 230 x 130 x 70mm 1 x FI-LS 16A type A 3PN 30mA 1 x CEE 16A 400V 6h socket outlet 1 x M32 cable gland

Regular price: CHF 259.4400
Miniature circuit-breaker, ETIMAT P10, 3-pole+N, characteristic C / 40A, 10kA
Miniature circuit-breaker, ETIMAT P10, 3-pole+N, characteristic C / 40A, 10kA

Content: 1 Piece (CHF 208.0710 / 3 Piece)

Regular price: CHF 69.3570
Automatic cutting machine GlobalCut 100 Vario Digital, cutting force max. 25 mm², incl. roll holder
Automatic cutting machine GlobalCut 100 Vario Digital, cutting force max. 25 mm², incl. roll holder

Universal cutting machine The GlobalCut 100 Vario universal cutting machine is our specialist for hoses, flat ribbon cables and stranded wires. After carefully reading the operating instructions and strictly observing the safety regulations described there, the machine can be operated by anyone without lengthy familiarisation. Depending on the country of use, the language of the display should be determined first. The GlobalCut 100 Vario can be used for more than just wire processing. Many customers from other branches of industry have found that our cutting machines are excellent for cutting other materials. For example, the machine is used for processing unrollable materials made of textiles, leather, paper, cardboard, plastic, foam, rubber and a large number of other diverse materials. This machine is always the right choice.

Regular price: CHF 5,248.2550

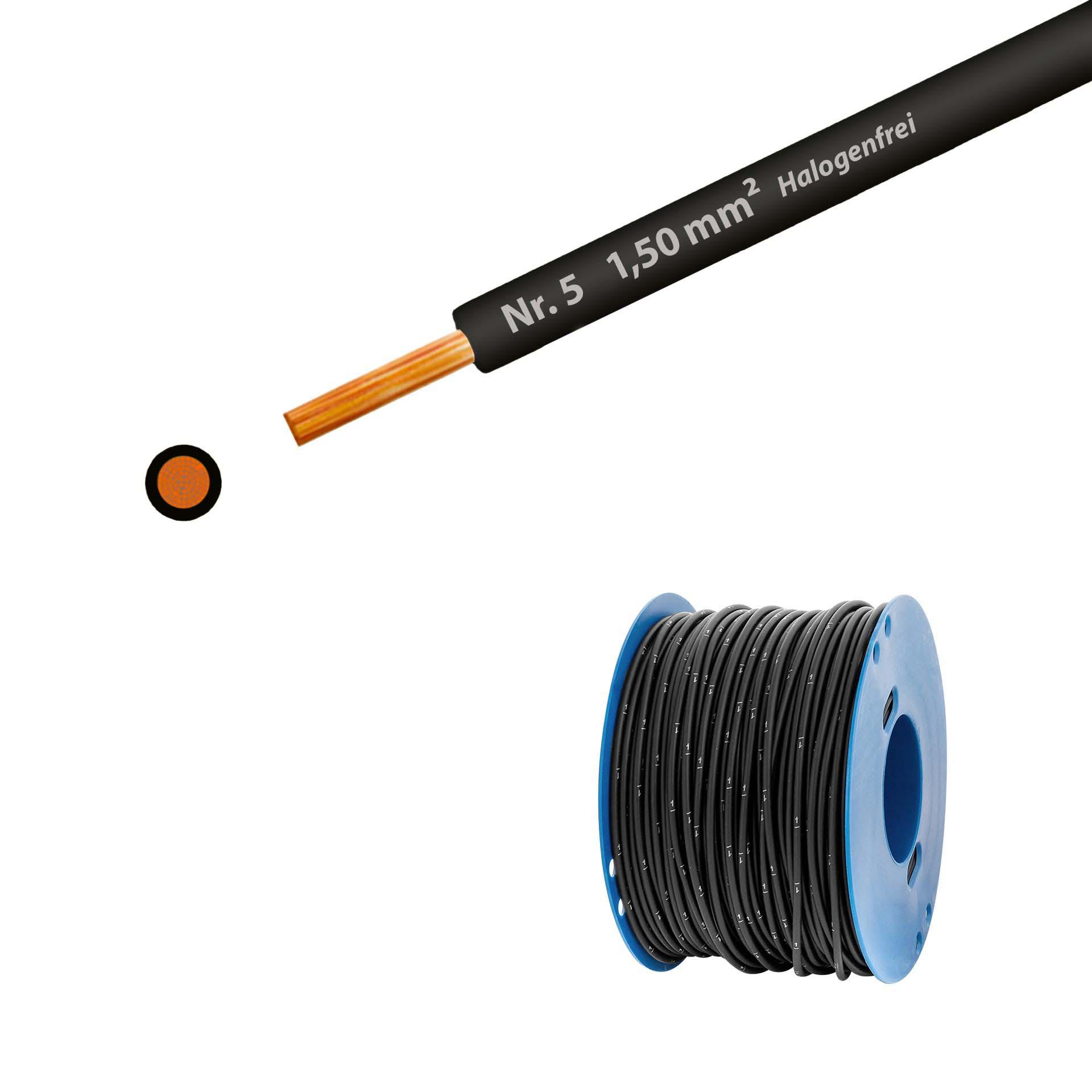

Halogen-free stranded wire 90° C, 750V, 1.50mm2, black no. 5 (RAL 9005), on plastic reel
