CHF 323.9805
Do you have some questions about this product?
- Your personal contact person
- Name: Aco Gorgiev
- E-Mail: aco@normrahmen.ch
- Phone: +41 31 744 10 45
-
Product Manager, Customer Consultancy Electrical Engineering, Production

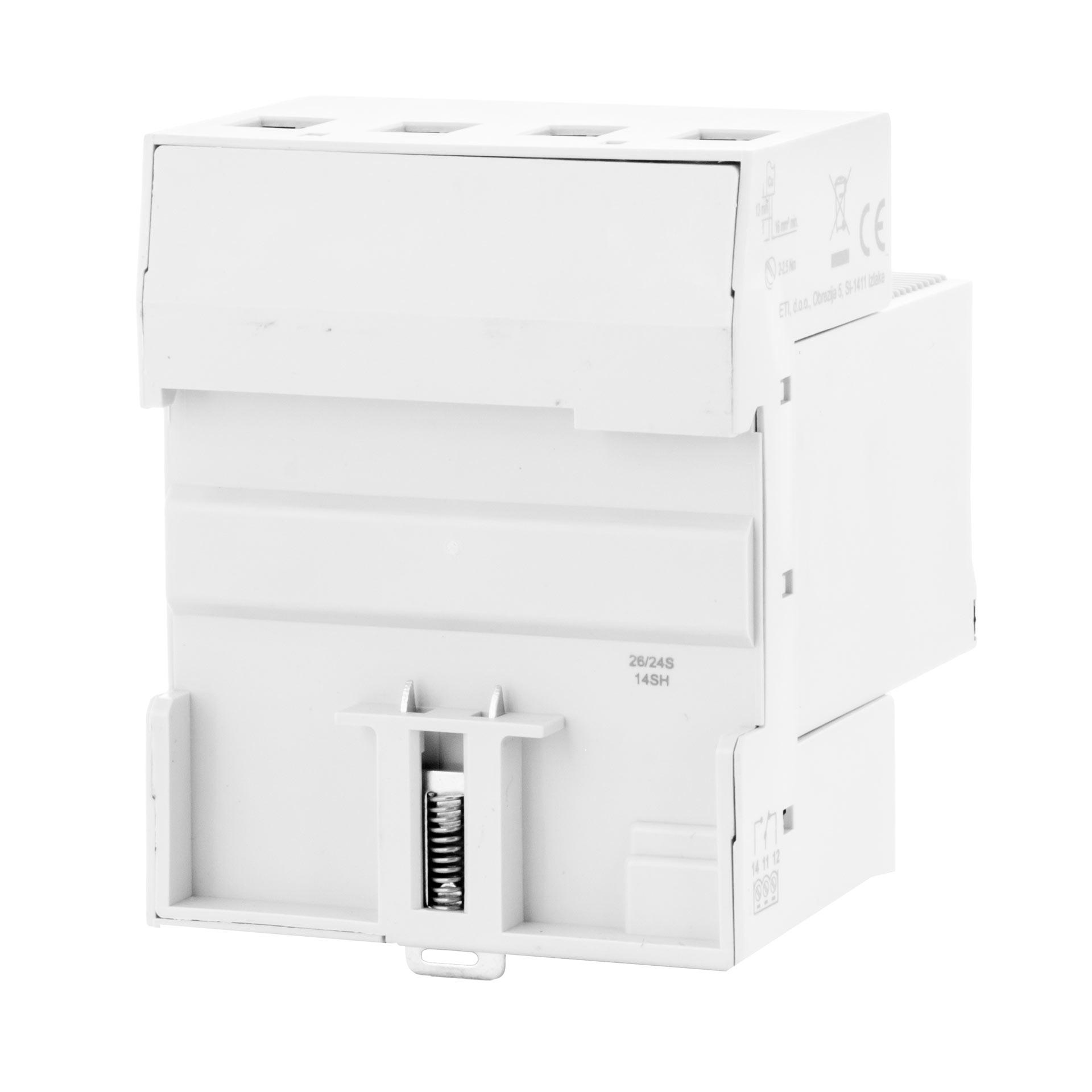

Product information "Surge arrester type 1+2, ETITEC V B T12 280/12.5 3+1 RC, (TN-S & TT)"
| Applied technology: | MOV |
|---|---|
| Article replaced by: | 64306 |
| I imp (10/350) Pulse current: | 12.5kA |
| I max (8/20): | 50kA |
| In (8/20): | 20kA |
| Integrated back-up fuse: | No |
| Interchangeable surge modules: | Yes |
| Leakage current free: | No |
| Net shape: | TT & TN-S |
| No back-up fuse required until: | 125A |
| Type: | T1 & T2 |
| Uc Continuous operating voltage: | 280V |
| Up - Voltage protection level: | < 1.5kV |
| With remote signalling contact: | Yes |
